View all instruments of this unit Wide-Field Microscope (L2 - Long Term Timelapse II) Zeiss Axiovert 200M
Basic Information
| Name: | Wide-Field Microscope (L2 - Long Term Timelapse II) | |
| Manufacturer: | Zeiss | |
| Model: | Axiovert 200M | |
| Facility: | Light Microscopy (LMF) |
|
| Partner: | Max Planck Institute of Molecular Cell Biology and Genetics (MPI-CBG) |
|
| Inventory number: | 404984 10.1.145.18 | |
Description
Category
Light Microscope
Overview
Motorized inverted wide-field system.
Suitable for long-term imaging of living cells in glass-bottom-dishes or -plates
Features
Inverted stand
motorized XY stage
motorized focus drive
Objectives
Zeiss Plan-Neofluar 5x 0.15 Ph1
Zeiss Plan-Neofluar 10x 0.3 Ph1
Zeiss LD-Achroplan 20x 0.4 Ph2
Zeiss Plan-Neofluar 40x 0.75 Ph2
Zeiss LD-Achroplan 63x 0.75 Ph2
Zeiss Plan-Apochromat 100x 1.4 Oil DIC
Zeiss Plan-Neofluar 25x 0.8 Oil/Gly/Water
Zeiss C-Apochromat 40x 1.2 W
Zeiss Plan-Neofluar 100x 1.3 Oil Ph3
Illumination
Transmitted Light (Halogen)
Fluorescence (Metal Halide)
Detection
Roper Scientific CoolSNAP ES
monochromatic Sony ICX285AL chip
1392 x 1040 pixels
6.45 μm pixel size
20 MHz digitization
8 e- rms readout noise @ 20 MHz
thermoelectric cooling (5°C below ambient temperature)
Reflectors
DAPI
HC-Quad-Set (AHF F68-888)
GFP/DsRed
Dapi/Fitc/DsRed
ET GFP 49002
Software
Molecular Devices MetaMorph v
7.1
Incubation
Stage incubator (T+CO2)
Link to Further Details
Points of Contact
Images
| Preview | Description |
|---|---|
|

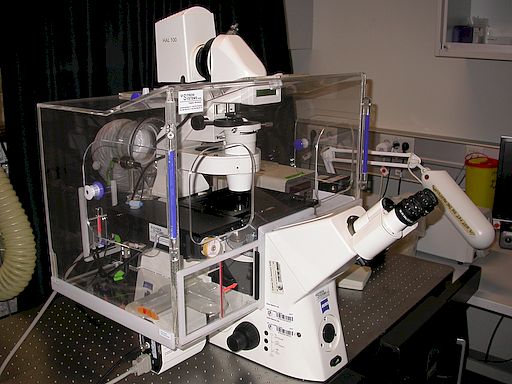

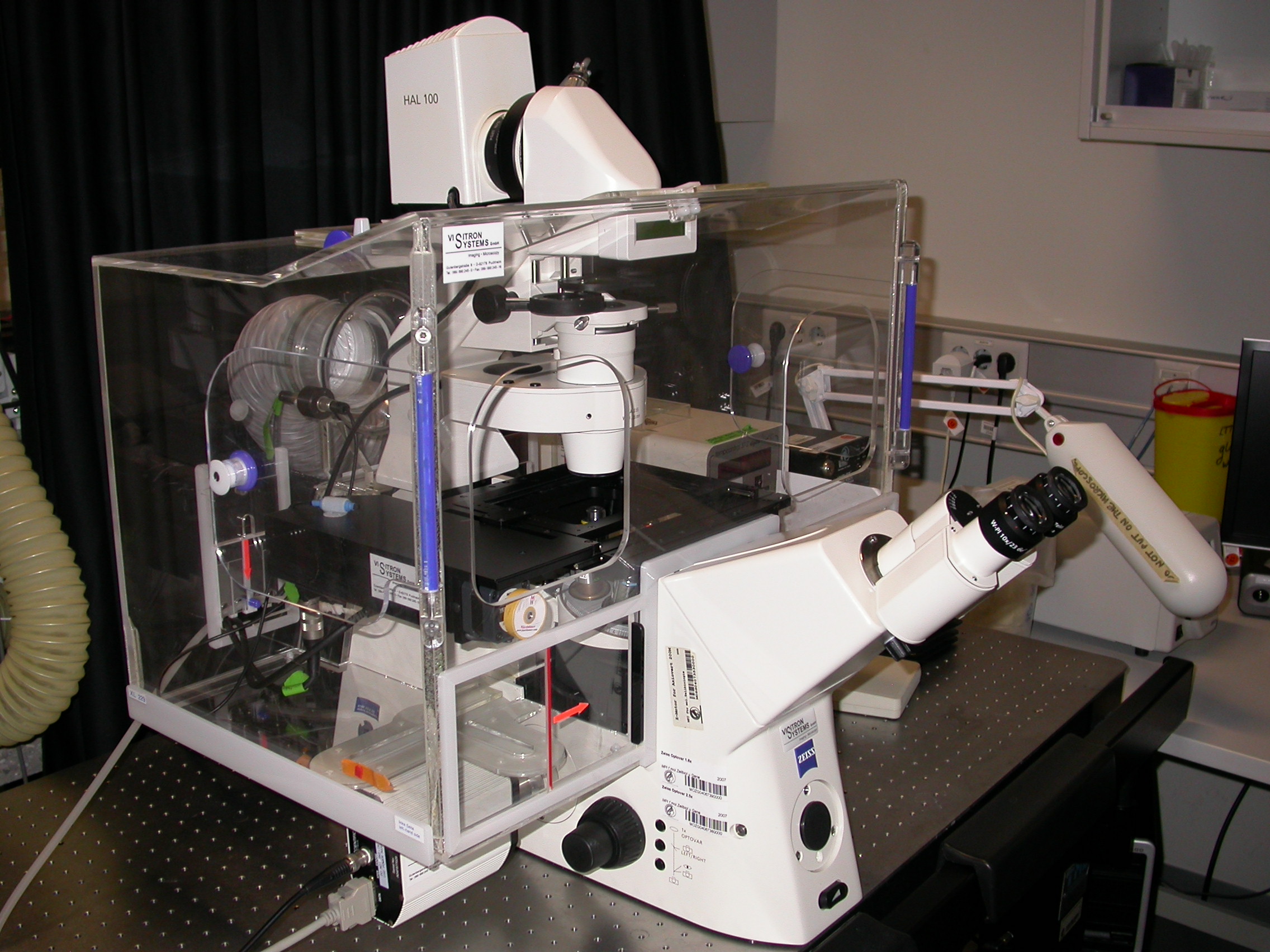

L2 - Long Term Timelapse II.jpg |
Last Update
Last updated at: 3 May 2024 at 11:03:36
