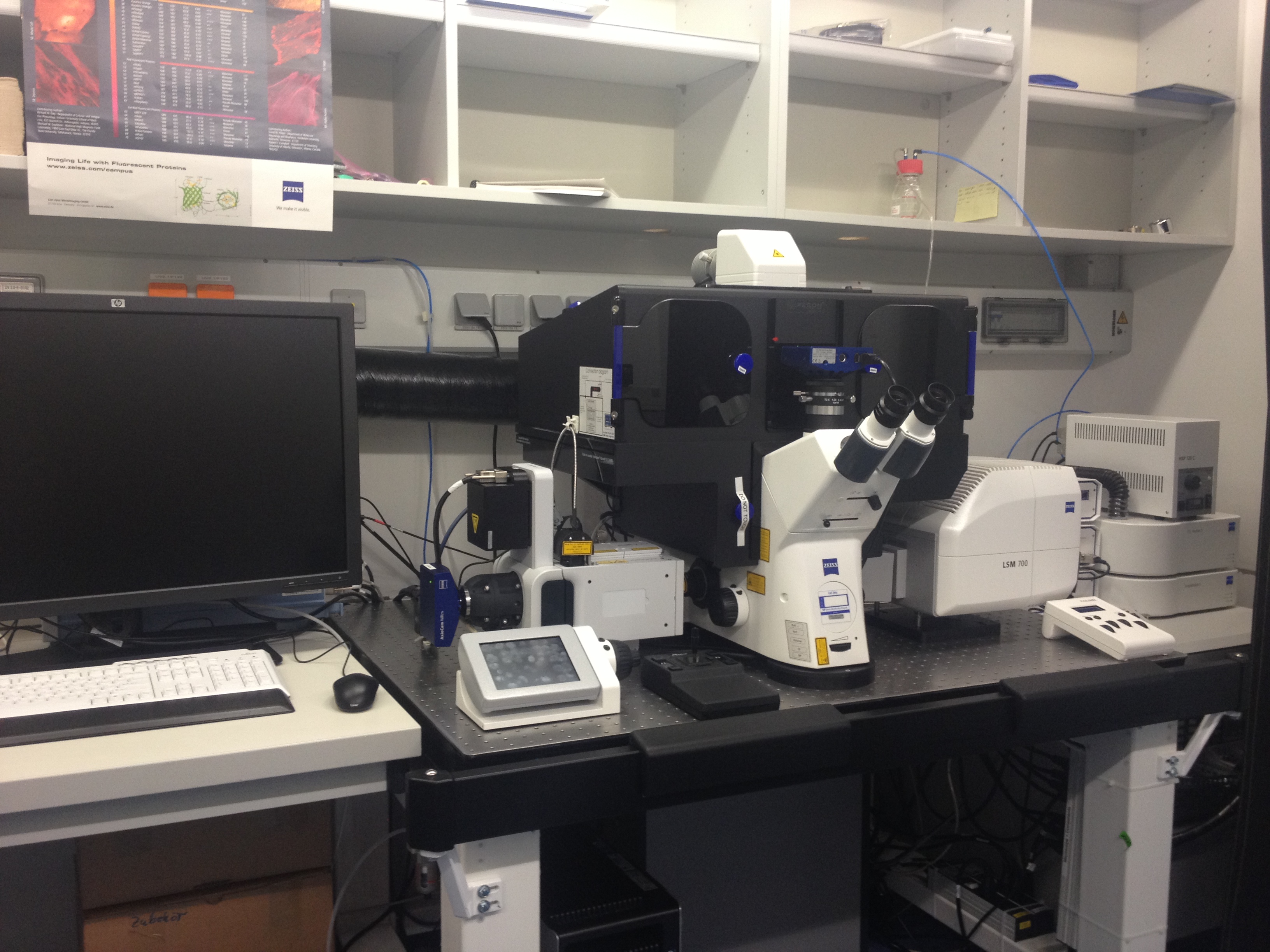

Real-Time Confocal Microscope (Zeiss Spinning Disc Incubation- DZNE SD2) Zeiss Axio Observer.Z1

Basic Information

Name: Real-Time Confocal Microscope (Zeiss Spinning Disc Incubation- DZNE SD2)
Manufacturer: Zeiss
Model: Axio Observer.Z1
Facility: Light Microscopy Facility (LMF)
Partner: German Center for Neurodegenerative Diseases Within The Helmholtz Association (DZNE)

Description

Category
Light Microscope
Overview
Fast, "real-time" confocal imaging
Suitable for fast "real time" live confocal imaging,
This Spinning disc system comes with a dark microscope stand incubation chamber, with which you can hold a stable temperature and CO2 environment.
This Spinning disc system comes with a dark microscope stand incubation chamber, with which you can hold a stable temperature and CO2 environment." cannot be used as a page name in this wiki.
live cell imaging
Features
Inverted stand
motorized
motorized xy scanning stage
motorized z-drive

  • fast live cell imaging
  • number of different stage inserts to meet a variety of samples:
- universal holder: for 1 slide or 1 dish
- multi slide holder: for up to 4 slides
- multiwell holder
  • fully integrated
dark incubation chamber Advanced Experiment Designer

  • fast live cell imaging
  • number of different stage inserts to meet a variety of samples:
- universal holder: for 1 slide or 1 dish <br /> - multi slide holder: for up to 4 slides <br /> - multiwell holder
  • fully integrated
dark incubation chamber Advanced Experiment Designer
<br />" cannot be used as a page name in this wiki.
Objectives
Zeiss EC Plan-Neofluar 5x 0.16 Ph1
Zeiss EC Plan-Neofluar 10x 0.3 Ph1
Zeiss Plan-Apochromat 20x 0.8
Zeiss LD LCI Plan-Apochromat 25x/0.8 Imm Korr DIC
Zeiss Plan-Apochromat 40x 0,95 korr.
Zeiss LCI Plan-Neofluar 63x 1.3 Imm Corr
Illumination
Transmitted Light (LED)
Fluorescence (Metal Halide, HXP, 120W)
Laser Diode 405 nm
Laser OPSL 488nm
Laser DPSS 561 nm
Laser Diode 635 nm
Detection
Spinning disc scan head Yokogawa CSU-X1M 5000 dual cam
physical pinhole radius: 50um
physical pinhole spacing: 250um
Zeiss AxiCam MRm Rev.3: 1388x1040 Px
pixel size 6.45x6.45um
12f/sec at full chip
Reflectors
Dichroic Quattro RQFT 405+488+568+647
Emission filter wheel:
Pos1: BP 450/50
Pos2: BP 525/50
Pos3: FE01 617/73
Pos5: BP 690/50
Software
ZEN Blue 2012
Incubation
Cage incubator (T+CO2)

Link to Further Details

https://www.biodip.de/wiki/Zeiss_Spinning_Disc_Incubation-_DZNE_SD2
