Facade testing frame TUD

Basic Information

Name: Facade testing frame
Manufacturer: TUD
Facility: Prüfhalle
Partner: Technische Universität Dresden (TUD)

Description

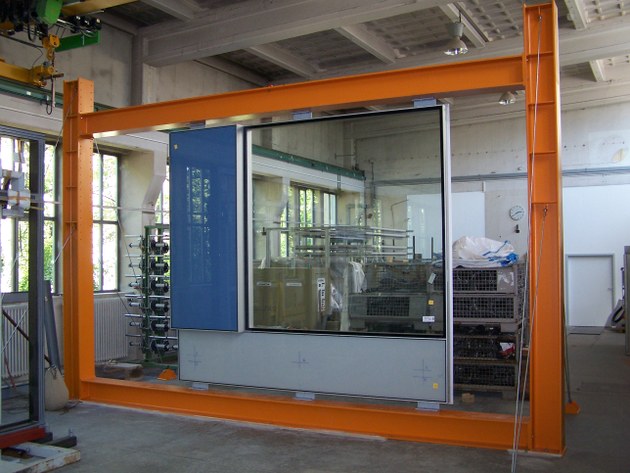

This steel frame made of steel profiles HEB300 serves as a supporting frame for the testing of façade and parapet elements up to a size of 5,900 mm x 3,900 mm (bxh). The locking profiles are provided with a drill raster of 200 mm x 100 mm (Ø 13 mm). The installation position of the upper bar profile is variable in increments of 100 mm.

Link to Further Details

https://tu-dresden.de/bu/bauingenieurwesen/bauko/friedrich-siemens-laboratorium/pruefhalle

Options of instrument usage

Points of Contact

Herr Dr.-Ing. Jan Ebert
Email:
Phone:
+49 (0)351 463-32252
Fax:
+49 (0)351 463-35039
