| Name: | Real-Time Confocal Microscope (Zeiss Spinning Disc - DZNE SD1) | |
| Manufacturer: | Zeiss | |
| Model: | Axio Observer.Z1 | |
| Facility: | Light Microscopy Facility (LMF) | |
| Partner: | German Center for Neurodegenerative Diseases Within The Helmholtz Association (DZNE) |
|
Description
- Category
- Light Microscope
- Overview
- Fast, "real-time" confocal imaging
- Suitable for fast live confocal imaging
- IMPORTANT: This system features an additional camera on the second camera port as well as a LED illumination system. It can therefore also be used as a conventional, fluorescence widefield microscope.
- IMPORTANT: This system features an additional camera on the second camera port as well as a LED illumination system. It can therefore also be used as a conventional, fluorescence widefield microscope." cannot be used as a page name in this wiki.
- Features
- Inverted stand
- motorized
- motorized xy scanning stage
- motorized z-drive
- a number of different stage inserts is provided to meet a variety of samples:
- - universal holder: for 1 slide or 1 dish
- multi slide holder: for up to 4 slides
- multiwell holder
- Objectives
- Zeiss Plan-Apochromat 63x 1.4 Oil
- Zeiss Plan-Apochromat 10x 0.45
- Zeiss Plan-Apochromat 20x 0.8
- Zeiss Plan-Apochromat 40x 0,95 korr.
- Zeiss Plan-Apochromat 5x/0.16
- Zeiss EC Plan Neofluar 2.5x 0.075
- Illumination
- Transmitted Light (LED)
- Fluorescence (Metal Halide, HXP, 120W)
- Colibri LED 365+470+590+625nm
- Laser Diode 405 nm
- Laser OPSL 488nm
- Laser DPSS 561 nm
- Laser Diode 635 nm
- Detection
- Spinning disc scan head Yokogawa CSU-X1M 5000 dual cam
- physical pinhole radius: 25um
- physical pinhole spacing: 250um
- Zeiss Axiocam 506 mono: 2752x2208 Px
- pixel size 4.54x4.54um
- 19f/sec at full chip
- Reflectors
- Dichroic Quattro RQFT 405+488+568+647
- Emission filter wheel:
Pos1: BP 450/50
Pos2: BP 525/50
Pos3: BP 629/62
Pos4: DBP 527/54 + 645/60
Pos5: BP 690/50
- Software
- ZEN Blue 2011 SP1
- Incubation
- Stage incubator (T) + objective heater
Link to Further Details
Points of Contact
Images
| Preview | Description |
|---|---|
|

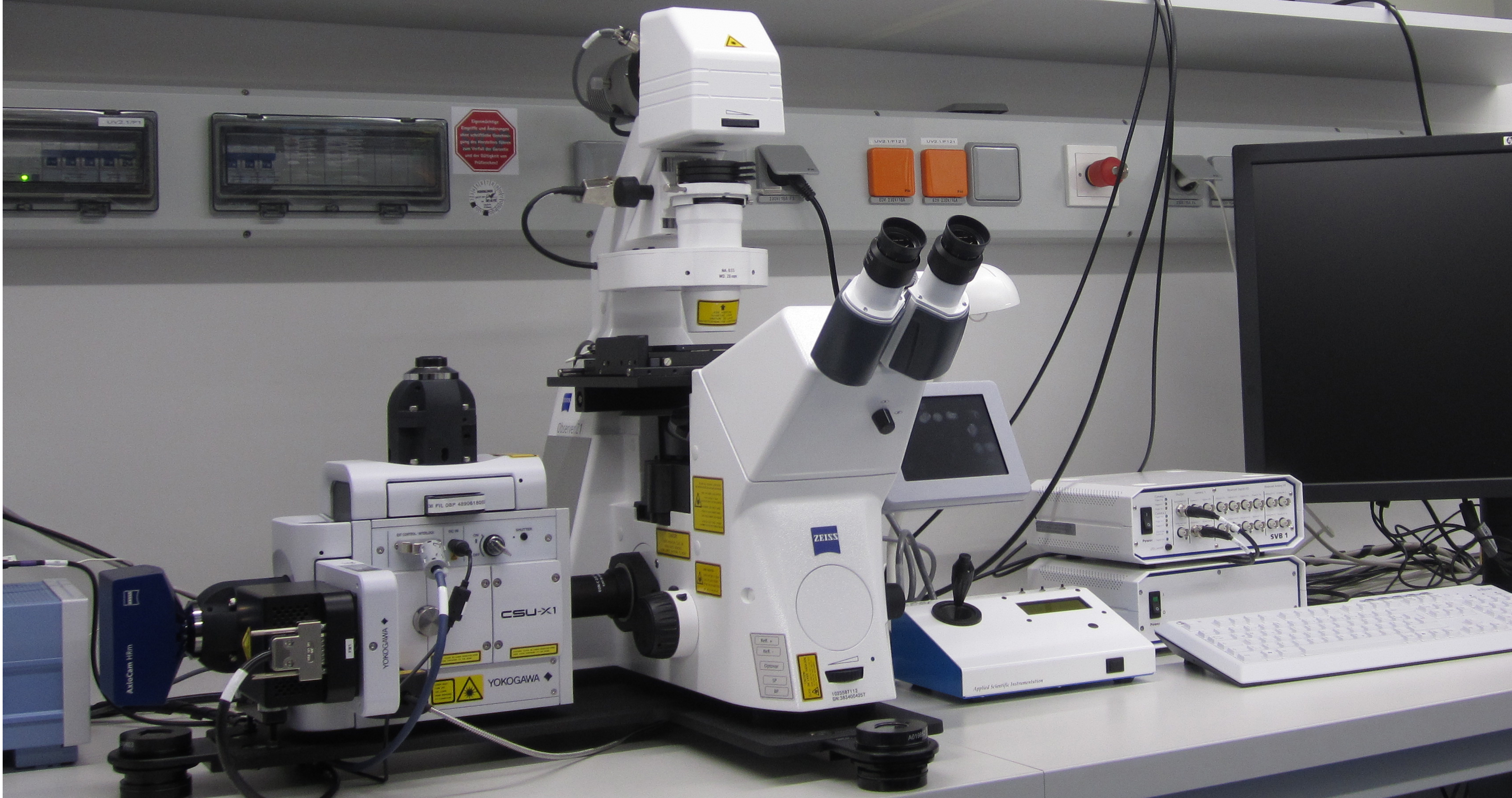

03 SpinningDisc DZNE.jpg |
