View all instruments of this unit Digital Image Correlation System / Digitales Bildkorrelationsmesssystem GOM GmbH ARAMIS 4M
Basic Information
| Name: | Digital Image Correlation System / Digitales Bildkorrelationsmesssystem | |
| Manufacturer: | GOM GmbH | |
| Model: | ARAMIS 4M | |
| Facility: | Chair of Computational and Experimental Solid Mechanics (NEFM) | |
| Partner: | Technische Universität Dresden (TUD) |
|
Description
Flächenhafte Messung der räumlichen Verzerrung der Messobjekt-Oberfläche und abgeleiteter Größen
Messbereich:
- Ortsauflösung: 2400x1728 Bildpunkte
- Zeitauflösung: bis 168 Hz (in Volläuflösung)
- Abbildungsfläche: 15x11 mm2 bis 270x190 mm2
***********English***********
Field measurement of three-dimensional distortion of the surface and other deduced quantities.
- Spatial Resolution: 2400x1728 Pixel
- Time Resolution: up to 168 Hz (in full spatial resolution)
- Measurement Area: between 15x11 mm2 and 270x190 mm2
Points of Contact
Prof. Markus Kästner / Mrs. K. Wendt (Secretary)
Web:
Email:
Phone:
+49 351 463-37555
Fax:
+49 351 463-37061
Images
| Preview | Description |
|---|---|
|

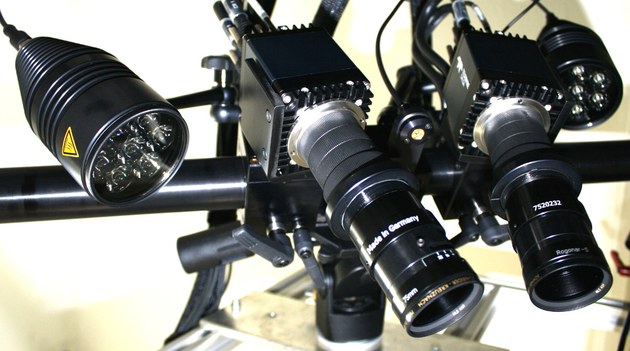

Digitales Bildkorrelationsmesssystem GOM GmbH ARAMIS 4M (© TUD/NEFM) |
