View all instruments of this unit Heißluftstation Weller WTHA 1
Basic Information
| Name: | Heißluftstation | |
| Manufacturer: | Weller | |
| Model: | WTHA 1 | |
| Facility: | Makerspace - SLUB Dresden (SLUB Makerspace) |
|
| Partner: | Saxon State and University Library Dresden (SLUB) |
|
Description
Technische Daten:
- Abmessungen L x B x H (mm) 212 x 172 x 122 mm
- Abmessungen L x B x H (Inch) 8,35 x 6,77 x 4,80 Inch
- Gewicht (ca) in kg 1,95 kg
- Spannung 230 V
- Leistung 900 W
- Kanäle 1
- Temperaturbereich (werkzeugabhängig) °C 50 - 600
- Temperaturbereich (werkzeugabhängig) °F 100 - 1000
- Temperaturgenauigkeit °C ± 30
- Temperaturgenauigkeit °F ± 54
- Temperaturstabilität °C ---
- Temperaturstabilität °F ---
- Potentialausgleichsbuchse ---
- Display Grafik-LC-Display mit Hintergrundbeleuchtung
- Luftverbrauch l/min ---
- Betriebsdruck in bar/psi Na
- Fördermenge l/min 5 - 60 l / 20°C5 - 110 l / 300°C
- Unterdruck Na
Link to Further Details
https://weller.de/de/Weller--Produkte--Produkt-Details.html?article_id=D0033459001448627242A119
Options of instrument usage
- This instrument can be used as an stand-alone device and is available for independent use. Please note possible requirements for access.
Points of Contact
Access Requirements
The hot air station is part of the electronics workstation, onto which all information can be found here.
Images
| Preview | Description |
|---|---|
|

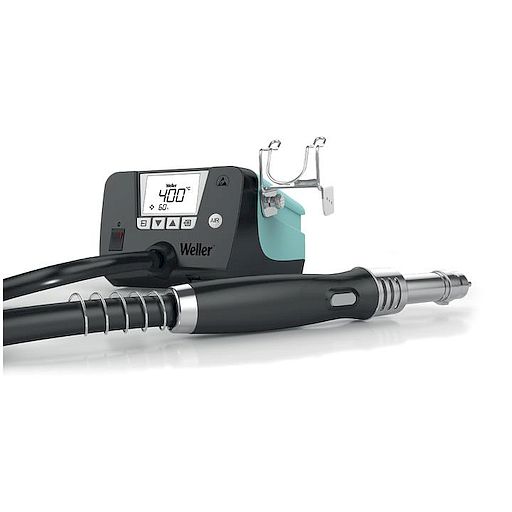

Heißluftstation |
Last Update
Last updated at: 6 October 2021 at 11:13:07
