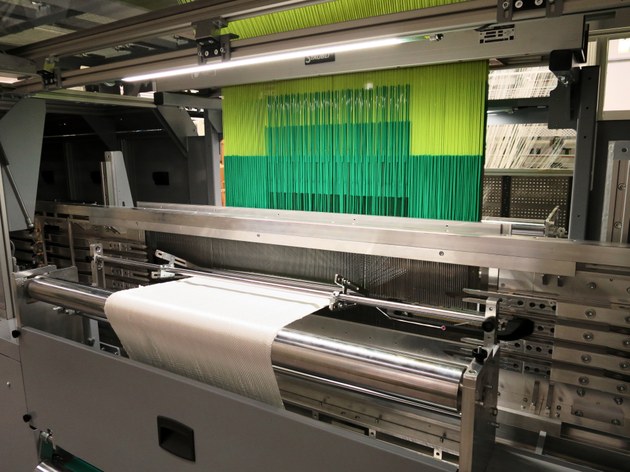

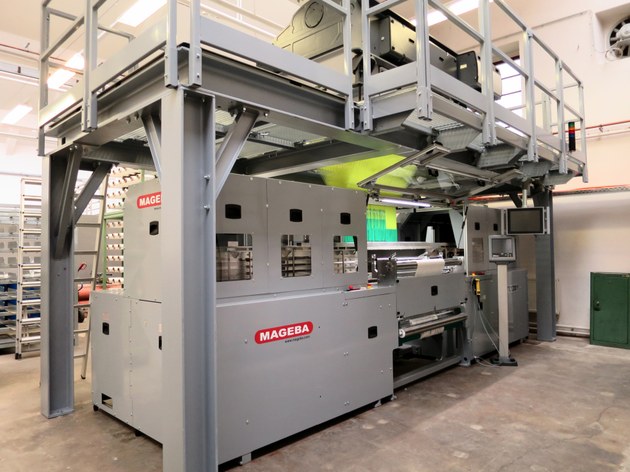

Shuttle Rapier Loom MAGEBA GmbH SL RTEC 1200/1

Basic Information

Name: Shuttle Rapier Loom
Manufacturer: MAGEBA GmbH
Model: SL RTEC 1200/1
Facility: Technical Center Textile Processes
Partner: Technische Universität Dresden (TUD)

Short Description

Suitable for the manufacturing of mult-layered, tubular and spacer fabrics as well as profile or 3D structures and special fabrics.

Description

Technical data Features
  • Manufacturer of the loom:  Mageba Textilmaschinen GmbH & Co. KG
  • Weft insertion system: shuttles combined with rapier rods (MAGEBA shuttle rapier system)
  • Manufacturer jacquard: Stäubli GmbH
  • Maximum fabric width:      1.000 mm
  • Jacquard:  electronically controlled jacquard unit for 3072 heddles/m with three-position shed
  • Number of weaving systems:  4
  • Linear reed movement
  • Fll 4 shuttle rapier system are freely programmable (in selection and lift)
  • Freely adjustable weaving width up to 1000 mm
  • Suitable for the manufacturing of mult-layered , tubular and spacer fabrics as well as profile or 3D structures and special fabrics
  • Solid design of all relevant machine components enables processing of coarse yarns, in particular for composites

Link to Further Details

https://tu-dresden.de/ing/maschinenwesen/itm/das-institut/infrastruktur-und-service/technikum-textilprozesse/webmaschinen

Options of instrument usage

Points of Contact

Prof. Dr.-Ing.habil. Chokri Cherif/ Mrs. S.Barth (Secretary)
Email:
Phone:
+49 351 463-39300
Fax:
+49 351 463-39301
