Alle Geräte dieser Einrichtung anzeigen Wide-Field Microscope (W3 - Zeiss CCD Upright) Zeiss Axioplan 2
Informationen
| Name: | Wide-Field Microscope (W3 - Zeiss CCD Upright) | |
| Hersteller: | Zeiss | |
| Modell: | Axioplan 2 | |
| Einrichtung: | Abteilung für Lichtmikroskopie (LMF) |
|
| Partner: | Max-Planck-Institut für Molekulare Zellbiologie und Genetik (MPI-CBG) |
|
| Inventarnummer: | 401536 | |
Beschreibung
- Category
- Light Microscope
- Overview
- It is an upright, motorized microscope with medium sensitivity CCD camera, fitted with uniblitz shutters.
- Suitable for correlative light electron microscopy/tomography (CLEM) with multi-channel imaging of fixed sample, sample screening, including CFP/Yfp FRET, image acquisition for deconvolution and DIC imaging, dark field microscopy
- Features
- Upright stand
- manual XY stage
- motorized Z-drive
- fluorescence
- transmitted light with manual DIC
- special dark field condenser
- Objectives
- Zeiss Fluar 5x 0.25
- Zeiss Plan-Neofluar 10x 0.30
- Zeiss Plan-Neofluar 40x 0.75
- Zeiss Achroplan 63x 0.80
- Zeiss Plan-Apochromat 63x 1.4 Oil DIC
- Zeiss Plan-Apochromat 100x 1.4 Oil DIC
- Zeiss Achroplan 20x 0.5 W Ph2
- Zeiss C-Apochromat 63x 1.2 W
- Zeiss EC Plan-Neofluar 100x 1.3 Oil Iris
- Illumination
- Transmitted Light (Halogen)
- Fluorescence (Metal Halide, X-Cite, 120W)
- Detection
- Diagnostic Instruments RT SPOT monochrome camera with 1600x1200 pixels (6.7 um^2)
- imaging source fire wire monochrome camera DMK 31AF03 FC 8bit with 1024 x 768 pixels (4.65um^2)
- Reflectors
- DAPI (X BP 333-383
- D LP 408
- M BP 432-484)
FITC (X BP 446-494 - DLP 513
- M BP 516-567)
TRITC ( X BP 543-554 - D LP 578
- M BP 579-637
YFP 491-509 - D LP 517
- M BP 519-546)
CFP X BP 426-446 - D LP 453,M BP 465-499)
Brightfield - Darkfield
- Phase Contrast
- and DIC
FITC/TRITC (X DBP 474-490 & - 542-566
- D DBP 502-533 &
- 577-677<
- M DBP 503-533 &
- 581-621)
- Software
- MetaVue
- version 7.1.3
- Incubation
- Not available
Link zu weiteren Informationen
Ansprechpartner
Bilder
| Vorschau | Beschreibung |
|---|---|
|

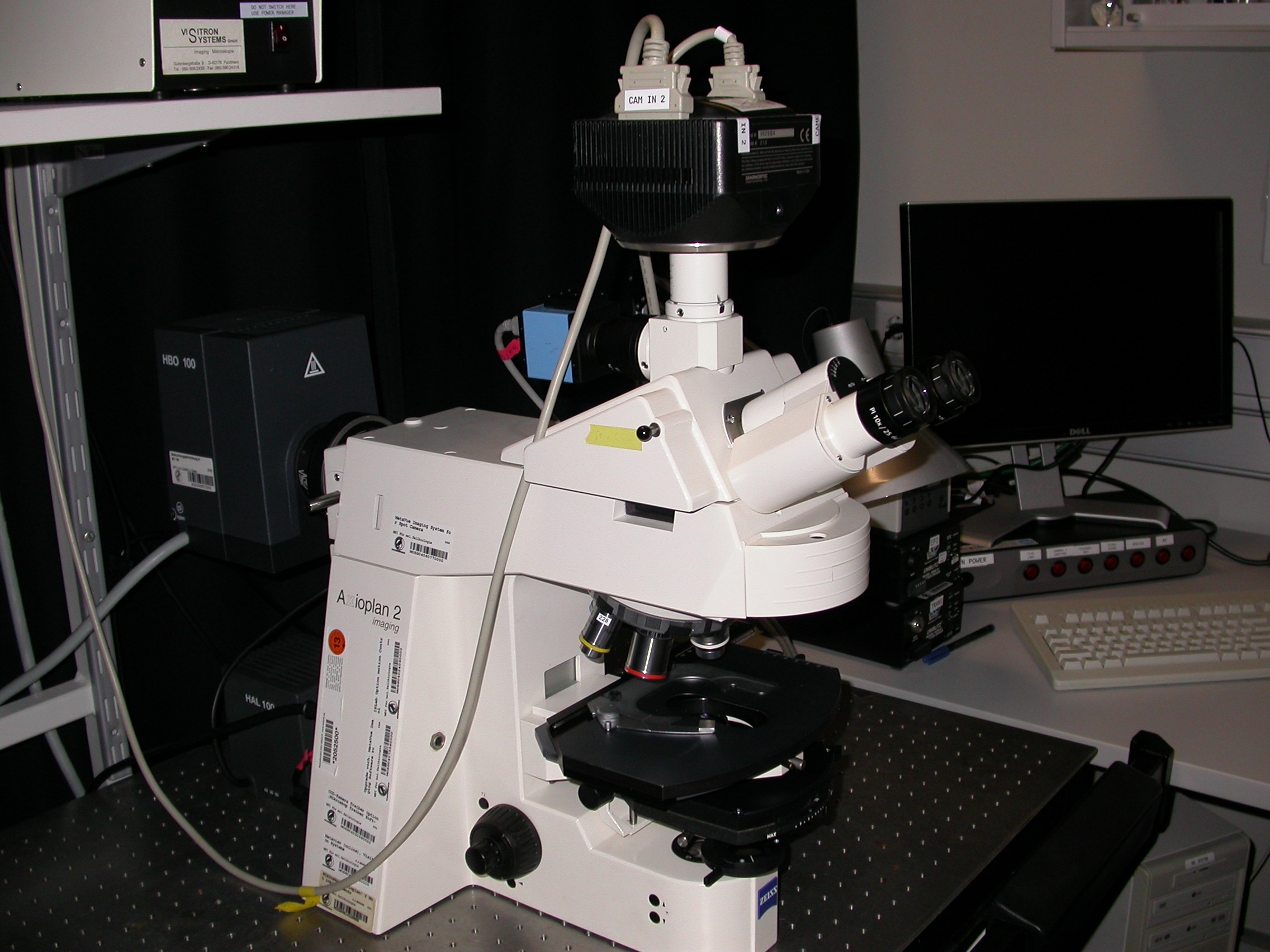

W3 - Zeiss CCD Upright.jpg |
