Dissection Microscope (W7 - Zeiss Laser Microdissection) Zeiss Axio Observer.Z1
Informationen
Name: | Dissection Microscope (W7 - Zeiss Laser Microdissection) | |
Hersteller: | Zeiss | |
Modell: | Axio Observer.Z1 | |
Einrichtung: | Abteilung für Lichtmikroskopie (LMF) | |
Partner: | Max-Planck-Institut für Molekulare Zellbiologie und Genetik (MPI-CBG) | |
Inventarnummer: | MOZGO 4093910000; Zeiss SIP 1024672713 |
Beschreibung
- Category
- Light Microscope
- Overview
- a laser microdissection system based on an inverted fluorescent microscope with a motorized stage and two cameras (b/w and color)
- Suitable for the manipulation of biological samples with a UV laser and subsequent contact-free collection of the cut-out material. It can be used for tissue sections, live cell selection and manipulations of whole organisms. Moreover it is a fully working widefield imaging system."the manipulation of biological samples with a UV laser and subsequent contact-free collection of the cut-out material. It can be used for tissue sections, live cell selection and manipulations of whole organisms. Moreover it is a fully working widefield imaging system." cannot be used as a page name in this wiki.
- Features
- Inverted stand,
- Robo Microbeam UV laser microdissection system
- Objectives
- Zeiss EC Plan Neofluar 2.5x 0.085
- Zeiss Fluar 5x 0.25
- Zeiss Fluar 10x 0.5
- Zeiss LD Plan-Neofluar 20x 0.4
- Zeiss LD Plan-Neofluar 40x 0.6
- Zeiss LD Plan Neofluar 63x 0.75
- Zeiss EC Plan-Neofluar 100x 1.3 Oil
- Zeiss Plan-Apochromat 150x 1.35 Glycerine
- Illumination
- Laser Diode 355 nm
- Colibri LED 365+470+590+625nm
- Fluorescence (Metal Halide, HXP, 120W)
- Transmitted Light (LED)
- Detection
- Axiocam MRm (1388*1040
- 6,45*6,45µm) - b/w
- AxioCam ICc with b/w and color option (1388 x 1038 pixel
- 4,65x4,65 μm
- 16,3x4,8 mm active area)
- Reflectors
- Pos 1: 100% mirror TL (for UV-cutting)
- Pos 2: FS09 AF 488 RL
Pos 3: FS14 AF 546 RL
Pos 4: FS34 BFP RL
Pos 5: FS44 FITC RL
Pos 6: FS62 HE B/G/HR RL
- Software
- Axiovision + PalmRobo 4.6
- Incubation
- Not available
Link zu weiteren Informationen
Ansprechpartner

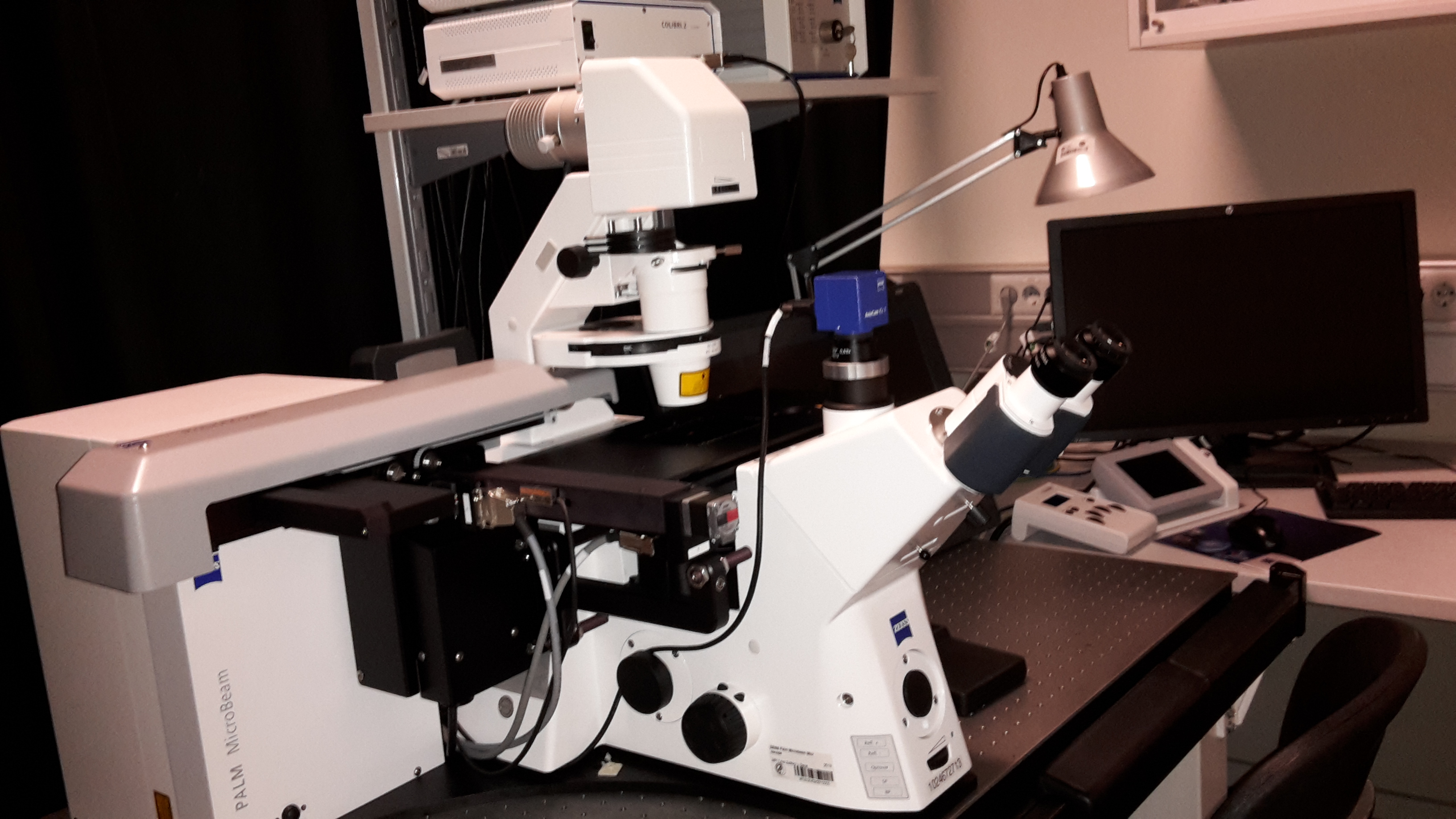

Bilder
Letztes Update
Zuletzt aktualisiert am: 8. April 2018 um 03:11:17
