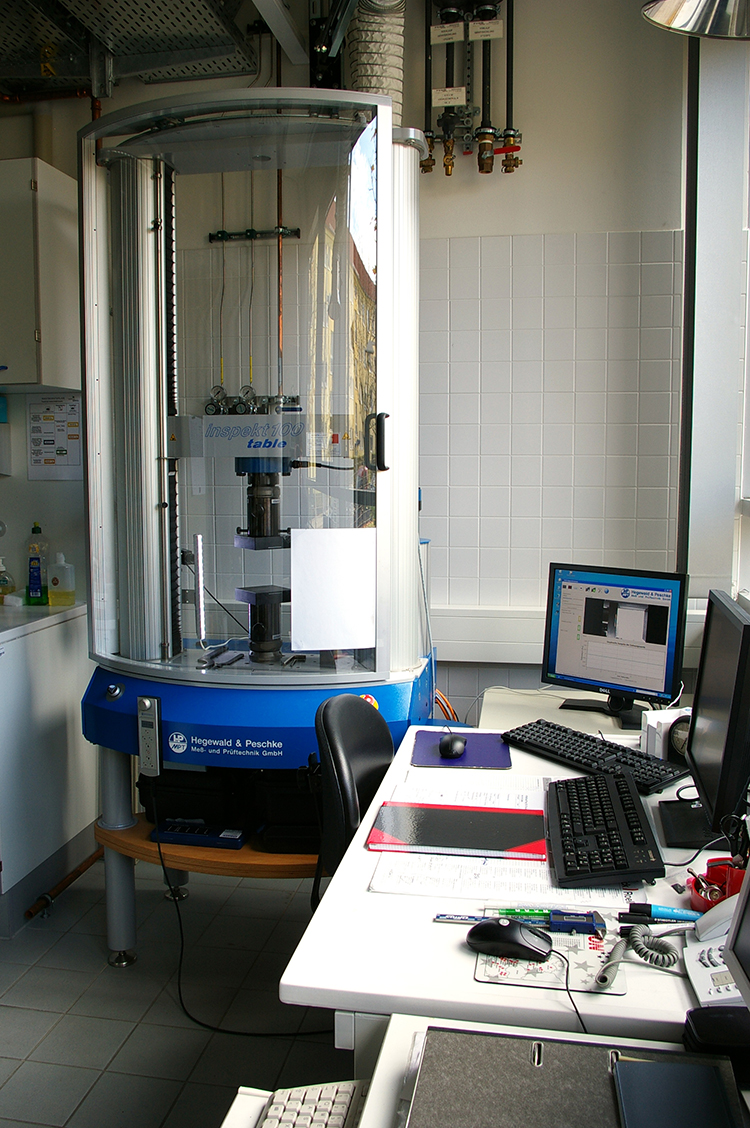

Universal Testing Machine Hegewald & Peschke Meß- und Prüftechnik GmbH Inspect Table 100
Informationen
Name: | Universal Testing Machine | |
Hersteller: | Hegewald & Peschke Meß- und Prüftechnik GmbH | |
Modell: | Inspect Table 100 | |
Einrichtung: | Mechanisches Prüflabor | |
Partner: | Fraunhofer-Institut für Fertigungstechnik und Angewandte Materialforschung, Institutsteil Dresden (IFAM) |
Beschreibung
The material testing machines of the inspekt table series have been designed for universal application in many different sectors of industry.
- Compression testing at room temperature on the basis of DIN 50106 (dense materials) and DIN 50134 (cellular materials)
- 3- and 4-point bending tests on the basis of DIN EN 843-1 with distances between supports from 20 mm to 300 mm
- Individual testing with freely programmable process (load, elongation)
- 2 load cells for maximal forces of 5 kN and 100 kN (annually calibrated)
- Measurement of elongation with videoextensometer (Limess, RtSS, annually calibrated) or traverse (annually calibrated, with deformation correction)
- Analysis of local deformations with software Vic 2D
Link zu weiteren Informationen
Ansprechpartner
Dipl.-Ing. Ulrike Jehring
Web:
Telefon:
+49 351 2537-395
Fax:
+49 351 2537-399
Notizen
This is an instrument within the Dresden Fraunhofer Cluster Nanoanalysis (DFCNA).
Zugeordnete Dienstleistungen
Name | Vorschau | Aktionen |
---|---|---|
Zug-, Druck-, Biege- und Scherfestigkeiten |
Bilder
Letztes Update
Zuletzt aktualisiert am: 13. Juli 2017 um 11:54:13
