Structured Illumination Microscope (ApoTome1 2nd floor, inv., CRTD) Zeiss Axio Observer.Z1

Basic Information

Name: Structured Illumination Microscope (ApoTome1 2nd floor, inv., CRTD)
Manufacturer: Zeiss
Model: Axio Observer.Z1
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 67051/00

Description

Category
Light Microscope
Overview
It is designed for routine work on fixed sample. Optical sectioning can be obtained on fixed samples by the use of the ApoTome1.
Features
Inverted stand
motorized XY stage
motorized z-stage
fluorescence
transmitted light with DIC
b/w epifluorescence acquisition
Optical Sectioning (ApoTome1)
sequential imaging
Brightfield and Fluorescence overlay
timelapse
z-stack
optical sectioning
mosaix scan
Objectives
Zeiss EC Plan-Neofluar 10x 0.3
Zeiss Plan-Apochromat 20x 0.8
Zeiss EC Plan-Neofluar 40x 1.3 Oil
Zeiss Plan-Apochromat 63x 1.4 Oil
Zeiss Plan-Apochromat 40x 0,95 korr.
Zeiss EC Plan Neofluar 2.5x 0.075
Illumination
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (Halogen)
Detection
Axiocam MRm (1388*1040
6,45*6,45µm) - b/w
Reflectors
FS 49: EX BP 347/55
BS LP 395
EM BP 445/50 (Dapi)
FS 38 HE: EX BP 470/40
BS LP 495
EM BP 525/50 (GFP)
FS 43 HE: EX BP 550/25
BS LP 570
EM BP 605/70 (Cy3)
FS 50 HE: EX BP 640/30
BS LP 660
EM BP 690/50 (Cy5)
FS 46 ET: EX BP 436/20
BS LP 455
EM BP 480/40 (CFP)
FS Analysator for DIC and Transmission
Software
32 bit: AxioVision
64 bit: Win7 ZEN blue 2012
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/ApoTome1_2nd_floor,_inv.,_CRTD

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

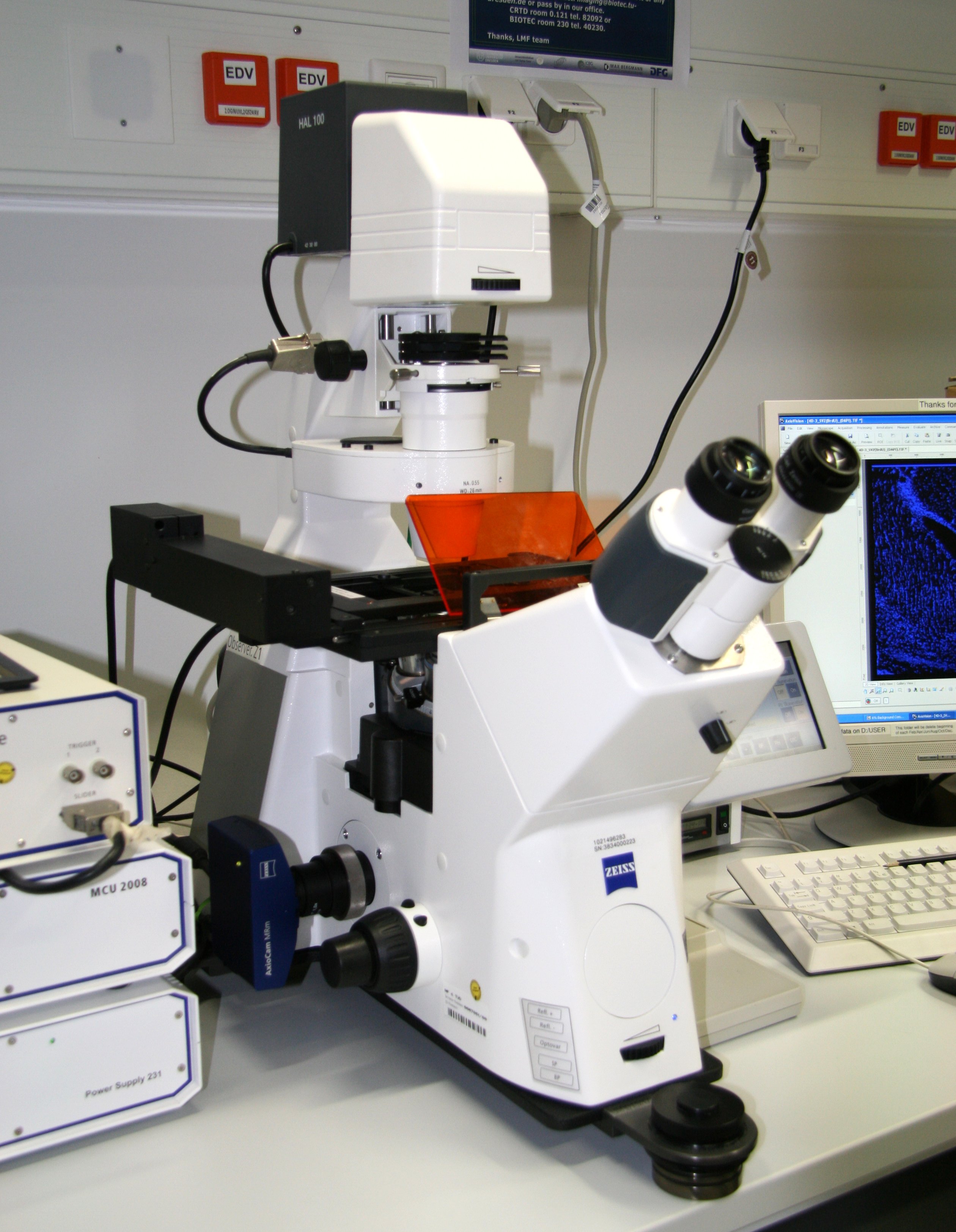

Images

Last Update

Last updated at: 8 April 2018 at 03:10:44
