Structured Illumination Microscope (ApoTome1 3rd floor, upr., CRTD) Zeiss Axio Imager

Basic Information

Name: Structured Illumination Microscope (ApoTome1 3rd floor, upr., CRTD)
Manufacturer: Zeiss
Model: Axio Imager
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 163533 (old)

Description

Category
Light Microscope
Overview
It is designed for routine work on fixed sample. Optical sectioning can be obtained on fixed samples by the use of the Apotome.
Features
Upright stand
motorized XY stage
motorized z-stage
fluorescence
transmitted light with DIC
b/w epifluorescence acquisition
Optical Sectioning (Apotome)
color acquisition for stained histological samples
sequential imaging
Brightfield and Fluorescence overlay
timelapse
z-stack
optical sectioning
mosaix scan
Objectives
Zeiss EC Plan Neofluar 2.5x 0.075
Zeiss Plan-Apochromat 5x/0.16
Zeiss Plan-Apochromat 10x 0.45
Zeiss Plan-Apochromat 20x 0.8
Zeiss Achroplan 40x 0.75 W
Zeiss Plan-Apochromat 40x 0,95 korr.
Zeiss C-Apochromat 63x 1.2 W
Illumination
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (Halogen)
Detection
Axiocam MRm (1388*1040
6,45*6,45µm) - b/w
Axiocam MRc (1388*1040 pixel
6,45*6,45µm) - color
Reflectors
F46-000 Dapi-ET: EX AT 350/50
BS LP 400
EM BP 460/50
EGFP-ET: EX BP 470/40
BS LP 495
EM BP 525/36
F46-004 Cy3-ET: EX BP 545/25
BS LP 565
EM BP 605/70
F46-006 Cy5-ET : EX BP 620/60
BS LP 660
EM BP 700/75
F46-003 YFP-ET: EX BP 500/20
BS LP 515
EM BP 535/30
Analysator for DIC and Transmission
Software
32 bit: AxioVision
64 bit: Win7 ZEN blue 2012
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/ApoTome1_3rd_floor,_upr.,_CRTD

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

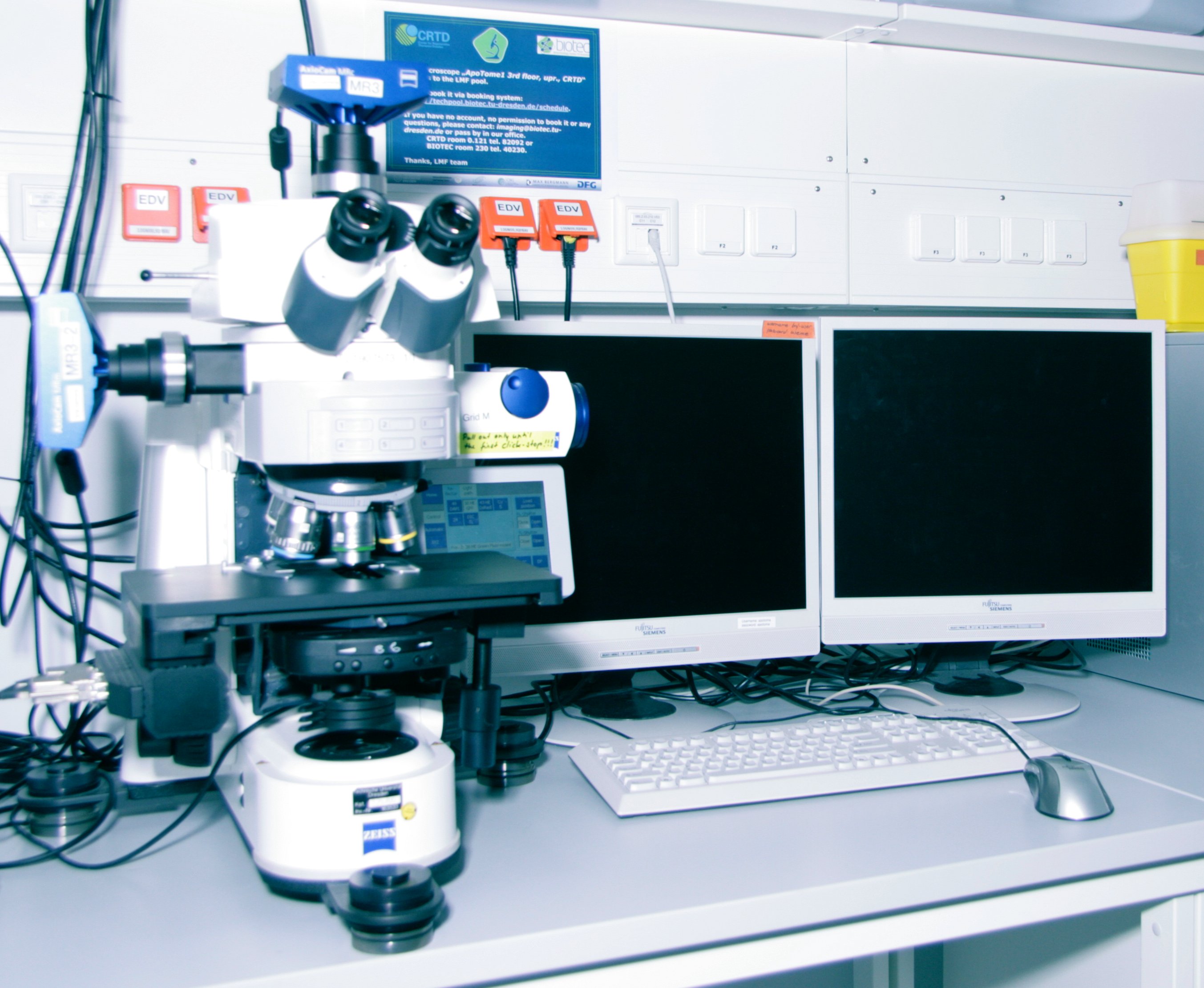

Images
