Structured Illumination Microscope (ApoTome1, inverse, BIOTEC) Zeiss Axiovert 200M

Basic Information

Name: Structured Illumination Microscope (ApoTome1, inverse, BIOTEC)
Manufacturer: Zeiss
Model: Axiovert 200M
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 121643

Description

Category
Light Microscope
Overview
Our Apotome microscope inverted is designed for routine work on fixed sample. Optical sectioning can be obtained on fixed samples by the use of the ApoTome.
Features
Inverted stand
automatic XY stage
motorized z-stage
fluorescence
transmitted light with manual DIC (Senarmont)
b/w epifluorescence acquisition
Optical Sectioning (Apotome)
Mosaix (tile scans)
sequential imaging
Brightfield and Fluorescence overlay
timelapse
z-stack
optical sectioning
micromanipulator
Objectives
Zeiss EC Plan-Neofluar 10x 0.3 Ph1
Zeiss Plan-Apochromat 20x 0.8
Zeiss Plan-Apochromat 40x 0,95 korr.
Zeiss EC Plan-Neofluar 40x 1.3 Oil
Zeiss Plan-Apochromat 63x 1.4 Oil Ph3
Zeiss alpha Plan-Fluar 100x 1.45 Oil
Zeiss EC Plan Neofluar 5x 0.16
Zeiss EC Plan Neofluar 2.5x 0.075
Illumination
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (Halogen)
Detection
Axiocam MRm (1388*1040
6,45*6,45µm pixel) - b/w
Axiocam MRc (1388*1040
6,45*6,45µm pixel) - color
Reflectors
DAPI : EX 360/40
BS 400
EM 460/50
EGFP : EX 470/40
BS 495
EM 525/50
Cy3 : EX 545/25
BS 565
EM 605/70
Cy5 : EX 620/60
BS 660
EM 700/75
Software
32 bit: AxioVision
64 bit: Win7 ZEN blue 2012
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/ApoTome1,_inverse,_BIOTEC

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

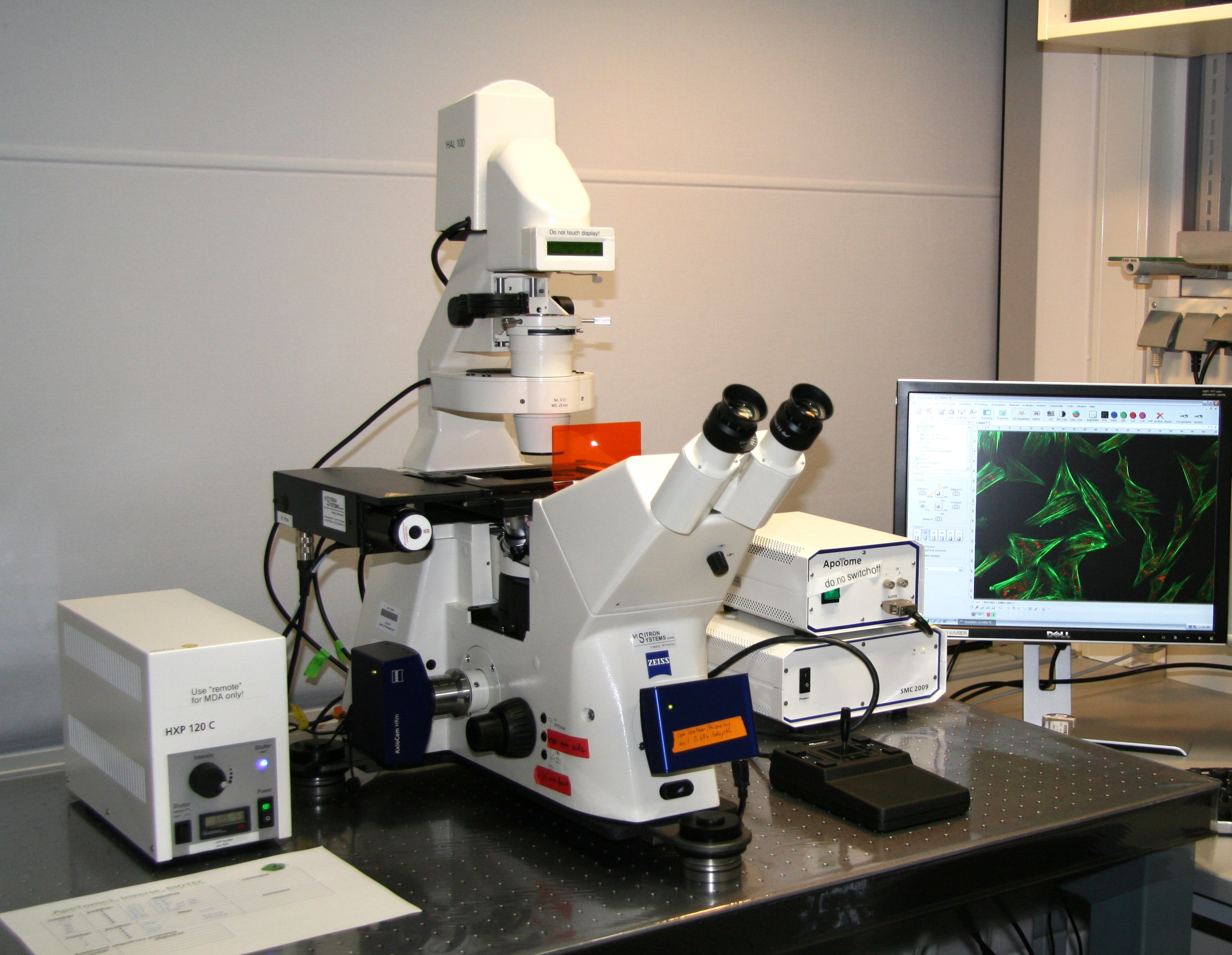

Images
