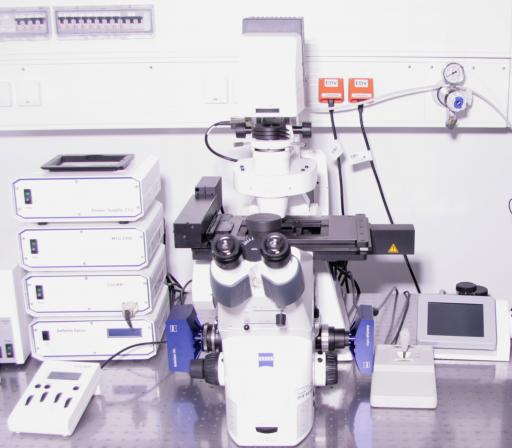

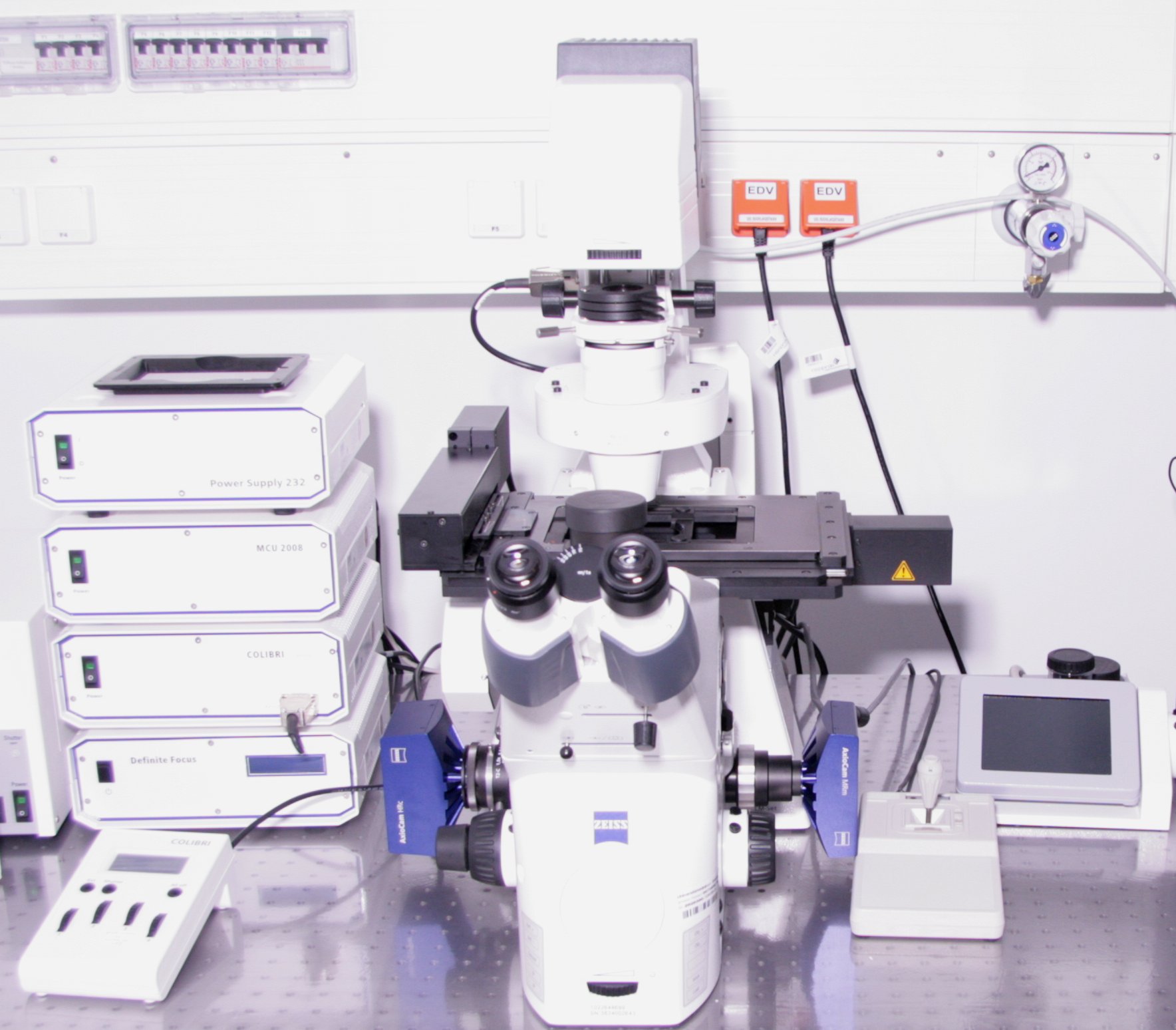

Structured Illumination Microscope (ApoTome2, inverse, CRTD) Zeiss Axio Observer.Z1

Basic Information

Name:	Structured Illumination Microscope (ApoTome2, inverse, CRTD)
Manufacturer:	Zeiss
Model:	Axio Observer.Z1
Facility:	Light Microscopy (LMF)
Partner:	Technische Universität Dresden (TUD)
Inventory number:	70836

Description

Category: Light Microscope

Overview: Our inverted ApoTome2 Microscope with hardware autofocus, colour and monochrome cameras is designed for routine work on fixed sample. Optical sectioning can be obtained on fixed samples by the use of the ApoTome2 slider.; Suitable for multichannel fluorescence, 3-D, time-lapse, tile scan, multiple points, hardware autofocus

Features: Inverted stand; automatic XY stage; motorized z-stage; fluorescence; transmitted light with manual DIC (Senarmont); b/w epifluorescence acquisition; Optical Sectioning (ApoTome2); Mosaic (tile scans)

Objectives: Zeiss EC Plan-Neofluar 10x 0.3 Ph1; Zeiss LD Achroplan 20x 0.4 Ph2; Zeiss EC Plan-Neofluar 40x 0.6 Ph2; Zeiss C-Apochromat 63x 1.2 W; Zeiss EC Plan Neofluar 2.5x 0.075; Zeiss Plan-Apochromat 20x 0.8

Illumination: Fluorescence (LED, 470nm); Fluorescence (LED, 590nm); Fluorescence (Metal Halide, HXP, 120W); Transmitted Light (Halogen)

Detection: Axiocam HRc (1388*1040; 6,45*6,45µm pixel) - color; Axiocam MRm (1388*1040; 6,45*6,45µm pixel) - b/w
tube lens 1x and 1.6x

Reflectors: FS 49: EX BP 347/55; BS 395; EM BP 445/50 (Dapi); FS 38HE: EX BP 471/40 (HE); BS 495 (HE); EM BP 495-545 (HE); (GFP)
FS 43HE: EX BP 550/25 (HE); BS 570 (HE); EM 605/70 (HE); (Cy3)
FS Cy5: EX BP 662-738; BS 660; EM BP 700/75; (Cy5)
FS F56-422: EX BP 474/23 &amp; BP 585/29; BS 495-555 &amp; BP 610-690; EM BP 525/55 &amp; BP 645/60; (GFP-DsRed)
FS Analysator for DIC and Transmission

Software: 32 bit: AxioVision; 64 bit: Win7 ZEN blue 2012

Incubation: Not available
