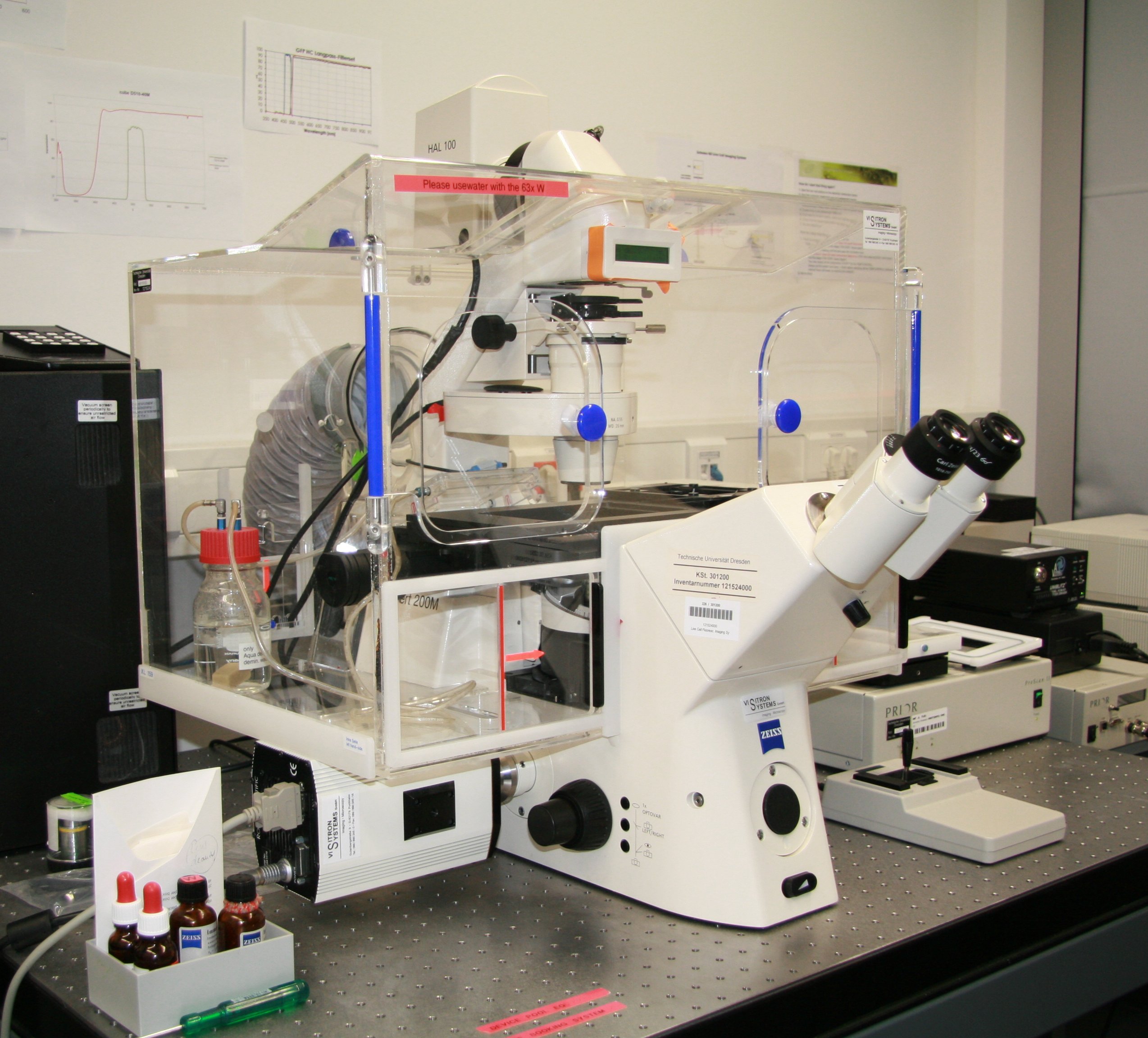

Wide-Field Microscope (Live Cell 4D, BIOTEC) Zeiss Axiovert 200M

Basic Information

Name: Wide-Field Microscope (Live Cell 4D, BIOTEC)
Manufacturer: Zeiss
Model: Axiovert 200M
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 121524

Description

Category
Light Microscope
Overview
Our Zeiss Axiovert 200 4D-System is designed for rapid acquisition LiveCell imaging in XYZ. The incubator allows control on temperature and CO2, and the motorized stage allows multiple-position imaging. Objectives can be mounted on a piezo for very fast z-acquisition."Our Zeiss Axiovert 200 4D-System is designed for rapid acquisition LiveCell imaging in XYZ. The incubator allows control on temperature and CO2, and the motorized stage allows multiple-position imaging. Objectives can be mounted on a piezo for very fast z-acquisition." cannot be used as a page name in this wiki.
Features
Inverted stand
motorized XYZ stage
z-Piezo
fluorescence
transmitted light with manual DIC
sequential imaging
Z stacks
time-series
advanced time-series
multiple position imaging
Objectives
Zeiss Plan-Apochromat 10x 0.45
Zeiss Plan-Apochromat 20x 0.8 Ph2
Zeiss EC Plan-Neofluar 40x 1.3 oil Ph3
Zeiss Plan-Apochromat 63x 1.4 Oil
Zeiss C-Apochromat 63x 1.2 W
Zeiss Plan-Apochromat 100x 1.4 Oil
Illumination
Fluorescence (DG4)
Fluorescence (Lumencor Spectra X light engine)
Transmitted Light (Halogen)
Detection
CCD Coolsnap HQ (1392*1040
6,45*6,45µm pixel)
Reflectors
DAPI : EX 360/40
BS 400
EM 460/50
FITC : EX 480/30
BS 505
EM 535/40
DsRed : EX 545/30
BS 570
EM 620/60
Cy5 : EX 620/60
BS 660
EM 700/75
Dual Band CFP/YFP (EX 437/19 503/27
EM 469/37 549/67) available on request
Dual Band GFP/DsRed (EX 474/27 565/22
EM 524/52 619/68) available on request
Fura based Ca-imaging (EX 340/12 380/14
BS 405
EM 510/40) available on request
Software
MetaMorph
VisiView
Incubation
Cage incubator (T+CO2)

Link to Further Details

https://www.biodip.de/wiki/Live_Cell_4D,_BIOTEC

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038
