View all instruments of this unit

Laser Scanning Confocal Microscope (LSM 780/FCS, inverse, BIOTEC) Zeiss Axio Observer

Basic Information

Name: Laser Scanning Confocal Microscope (LSM 780/FCS, inverse, BIOTEC)
Manufacturer: Zeiss
Model: Axio Observer
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 184202

Description

Category
Light Microscope
Overview
It is an inverted Laser Scanning Confocal microscope with up to 32 spectral detection channels, 2 PMTs and one transmission channel. It provides F(C)CS functionality by the ConfoCor3 module. For FCS please ask Wolfgang Staroske.
Suitable for the detection of multiple fluorescent dyes, FRAP, FRET, optical sectioning for 3D reconstruction, linear and spectral unmixing of overlapping emission spectra. It can acquire brightfield and DIC images with the transmission detector
Features
Inverted stand
-
spectral scan
F(C)CS with ConfoCor 3 unit
Objectives
Zeiss Plan-Apochromat 10x 0.45
Zeiss Plan-Apochromat 20x 0.8
Zeiss C-Apochromat 40x 1.2 W
Zeiss Plan-Apochromat 63x 1.4 Oil
Zeiss Plan Neofluar 40x 1.3 oil
Illumination
Laser Diode 405 nm
Laser Argon Multiline 458, 488, 514 nm
Laser DPSS 561 nm
Laser HeNe 633 nm
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (Halogen)
Detection
32 PMT channels (GaAsP)
2 PMTs
transmission detector
2 APDs (Confocor 3)
Reflectors
Zeiss set 49: DAPI
Zeiss set 38: GFP
Zeiss set 43: Cy3
DIC/POL
Software
Zen 2011 SP3
Incubation
Cage incubator (T+CO2)

Link to Further Details

https://www.biodip.de/wiki/LSM_780/FCS,_inverse,_BIOTEC

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

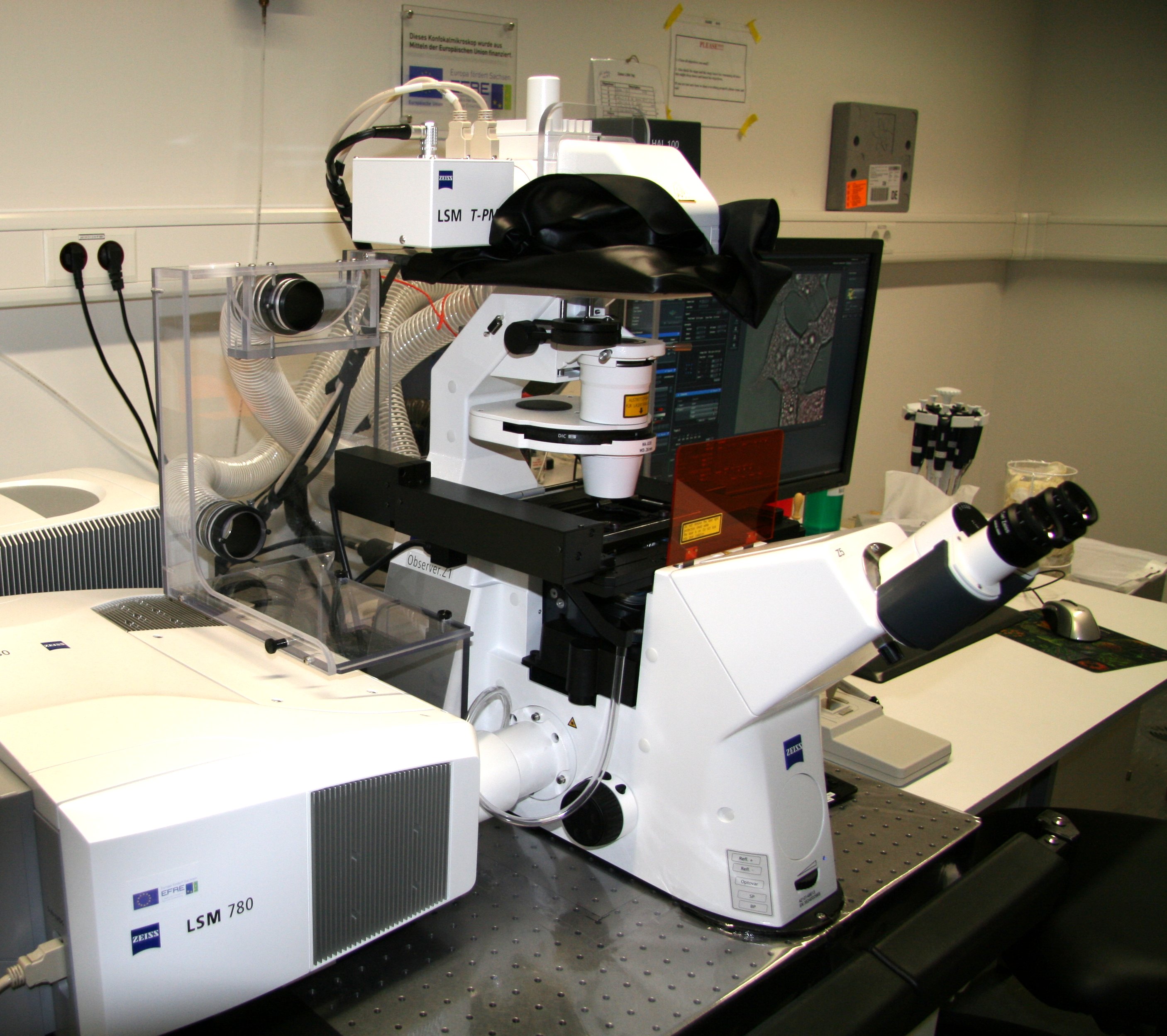

Images

Last Update

Last updated at: 8 April 2018 at 03:10:54
