Laser Scanning Confocal Microscope (SP5 I, upright, BIOTEC) Leica DM6000

Basic Information

Name: Laser Scanning Confocal Microscope (SP5 I, upright, BIOTEC)
Manufacturer: Leica
Model: DM6000
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 146330

Description

Category
Light Microscope
Overview
[[description::Our Leica TCS SP5 I confocal setup is designed for working on living sample and dedicated for high resolution imaging in XYZ. The upright configuration and the dipping lenses make it optimal for embryo development studies. An incubator allows long timelapse with living samples. The laser lines are well distributed over the spectrum and especially good for common dye combinations. Due to the conventional setup, it's straight forward to work with.]]
Features
upright stand
motorized XYZ stage
Z-piezo stage
fluorescence
transmitted light with automatic DIC
simultaneous imaging
sequential imaging
line scan
point scan
Z stacks
multi-position imaging
time-series
advanced time-series
averaging
summarizing
scan zoom and rotation
Objectives
Leica HCX PL APO 40x 0.75
Leica HC PL APO 20x 0.7
Leica HC PL APO 10x 0.4
Leica HC PL FLUOTAR 5x 0.15
Leica HC PL APO CS 40x 1,25-0,75 Oil
Leica HC PL APO 100x 1.4 Oil
Leica HCX PL APO 100x 1.47 Oil Korr.
Illumination
Transmitted Light (Halogen)
Fluorescence (Metal Halide, HXP, 120W)
Laser Diode 405 nm
Laser Argon Multiline 458, 477, 488, 496, 514 nm
Laser DPSS 561 nm
Laser HeNe 633 nm
Detection
point scanner
2 confocal HyD´s
3 confocal PMTs
T-PMT
AOBS for excitation/emission splitting
SP detector for detection range selection
common pinhole
Reflectors
GFP/FITC (L5) : EX 480/40
BS 505
EM BP 527/30
DAPI (A) : EX 360/40
BS 400
EM LP 425
TRITC/DsRed/RFP : EX 545/30
LP 570
EM BP 620/60
Analysator
Software
LAS AF
Incubation
Cage incubator (T+CO2)

Link to Further Details

https://www.biodip.de/wiki/SP5_I,_upright,_BIOTEC

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

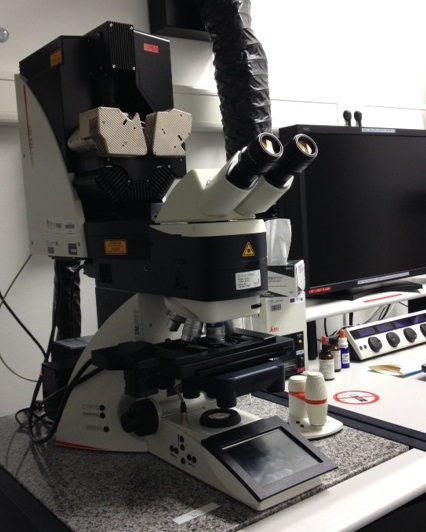

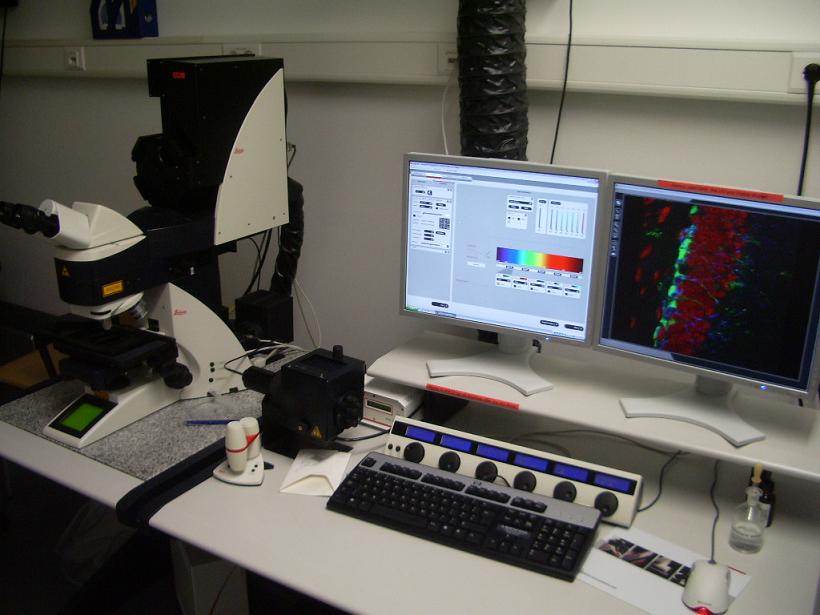

Images
