Wide-Field Microscope (SteMi Discovery, CRTD) Zeiss Discovery.V20

Basic Information

Name: Wide-Field Microscope (SteMi Discovery, CRTD)
Manufacturer: Zeiss
Model: Discovery.V20
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 162036

Description

Category
Light Microscope
Overview
It is an upright stereo microscope with a large-chip color camera. It's suitable for transmitted and reflected bright-field, and for fluorescence imaging.
Suitable for It's particularly suitable for imaging of fixed, stained histological samples.
Features
Upright stand
upright stand with a 20x optical zoom unit
optical zoom unit 0.75x .
15x
eyepieces 10x/23
- with 0.63 objective magnification 0.47x .
9.45x (including eyepieces 4.7x .
94.5x)
- with 1.5 objective magnification 1.13x .
22.5x (including eyepieces 11.3x .
225x)
- with 0.63 objective magnification 0.47x .
9.45x (including eyepieces 4.7x .
94.5x)<br /> - with 1.5 objective magnification 1.13x .
22.5x (including eyepieces 11.3x .
225x)<br />" cannot be used as a page name in this wiki.
Objectives
Zeiss PlanApoS 0.63x FWD 81mm
Zeiss PlanApoS 1.5x FWD 30mm
Illumination
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (KL 2500 LCD - 24V, 250W Halogen)
Detection
Spot Insight QE Color 4MPixel (2048x2048 pixel
7,4x7,4μm
14bit@20MHz
15.16 x 15.16 mm active area)
Reflectors
FS 58: EX BP 390/70
BS 440
EM LP 470 (Dapi)
FS 38: EX BP 470/40
BS 495
EM BP 525/50 (GFP)
FS 43: EX BP 545/25
BS 570
EM BP 605/70 (RFP)
Software
Diagnoscics Instruments SPOT 5.1 Basic Software
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/SteMi_Discovery,_CRTD

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

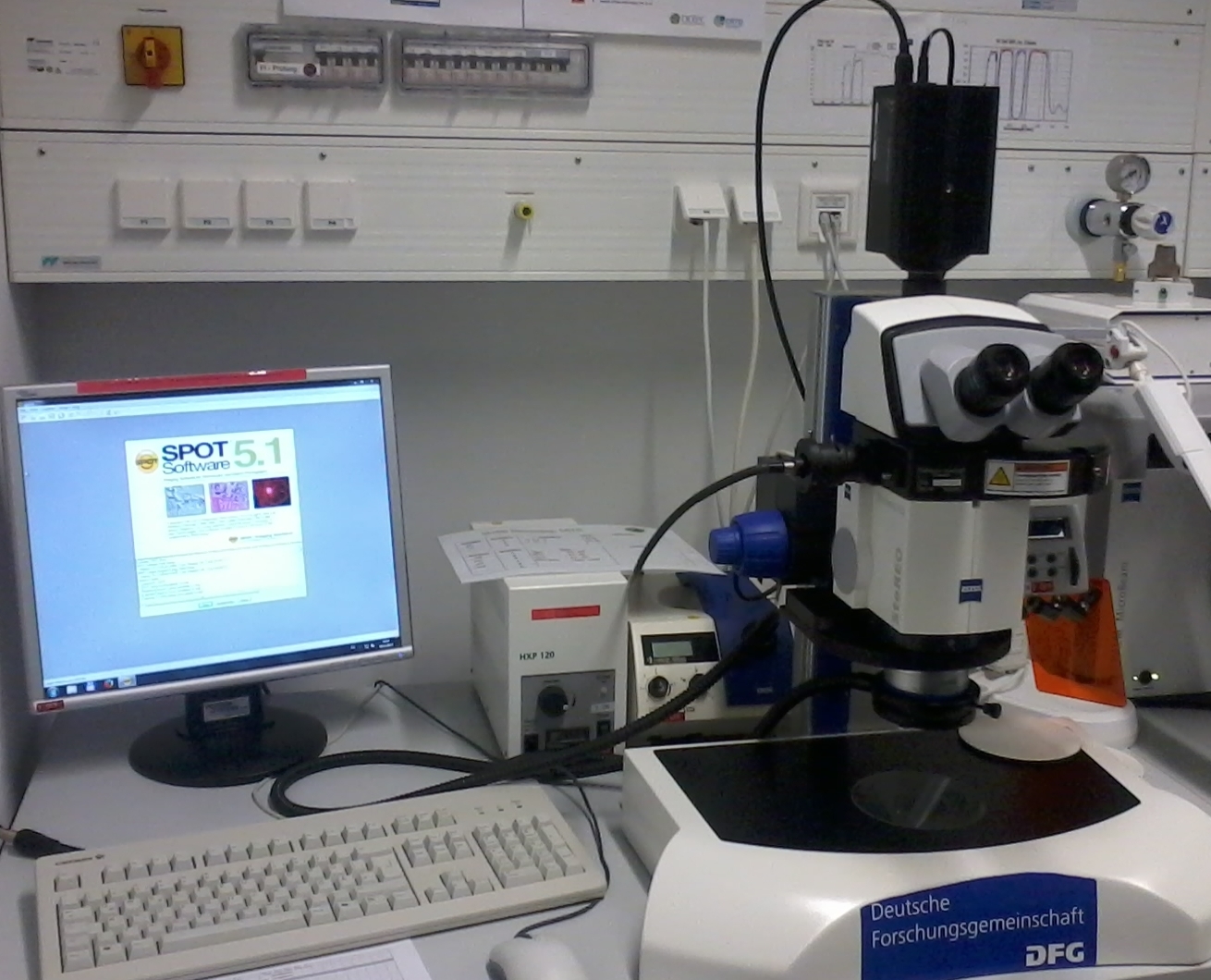

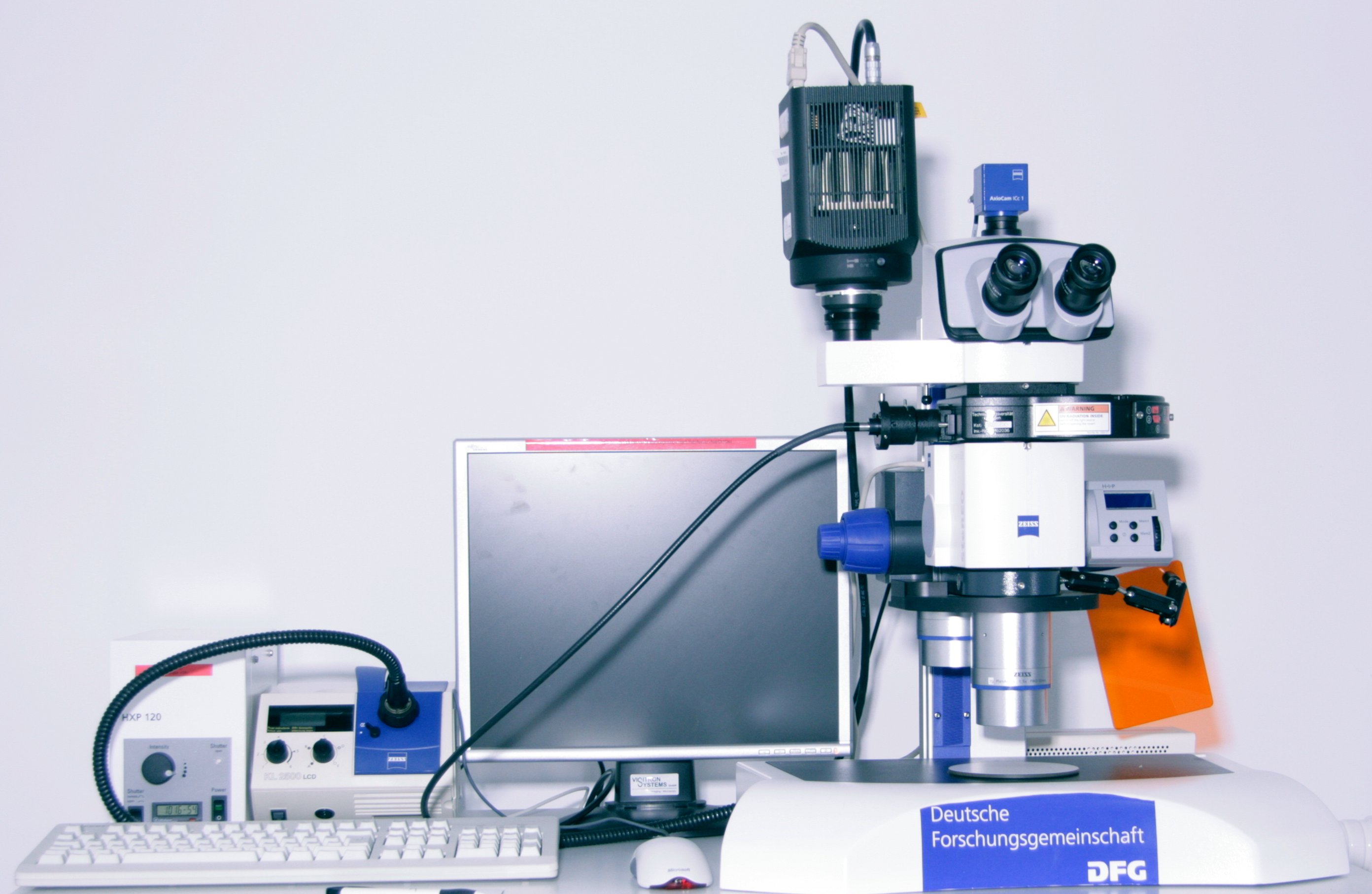

Images
