Wide-Field Microscope (WF Olympus upright, BIOTEC) Olympus BX 61

Basic Information

Name: Wide-Field Microscope (WF Olympus upright, BIOTEC)
Manufacturer: Olympus
Model: BX 61
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 106553

Description

Category
Light Microscope
Overview
Our Olympus videomicroscope upright is designed for routine work on fixed sample. Fluorescent samples and stained histological samples can be imaged due to the use of two possible cameras, a b/w Photometrics and a color Spot CCD. Timelapse, along with z-stacks can be performed with the use of motorized z-stage"Our Olympus videomicroscope upright is designed for routine work on fixed sample. Fluorescent samples and stained histological samples can be imaged due to the use of two possible cameras, a b/w Photometrics and a color Spot CCD. Timelapse, along with z-stacks can be performed with the use of motorized z-stage" cannot be used as a page name in this wiki.
Features
Upright stand
manual XY stage
motorized Z-stage
fluorescence
transmitted light with manual DIC
color and b/w acquisition
timelapse imaging
z-stack
Brightfield
Fluorescence
Objectives
Olympus UPlanFl 4x 0.13
Olympus UPlanSApo 10x 0.4
Olympus UPlanFl 20x 0.5 Ph1
Olympus UPlanSApo 20x 0.85 Oil
Olympus UPlanFLN 40X 0.75 Ph2
Olympus UPlanSApo 60x 1.35 Oil
Olympus UPlanApo 100x 1.35 oil Ph3
Olympus UPlanSApo 40x 0.95
Illumination
Transmitted Light (Halogen)
Fluorescence (HBO)
Detection
Coolsnap fx (1300x1030 pixel
6,7x6,7μm
12bit@20MHz)
Spot Insight QE Color (2048x2048 pixel
7,4x7,4μm
14bit@20MHz)
Olympus DP71 color (1360x1024
up to 4080x3072 by pixel shift
6,45x6x45 µm)
Reflectors
DAPI : EX 365/10
BS 400
EM LP 420
GFP/FITC : EX 480/20
BS 495
EM 525/50
GFP/FITC : EX 470/40
BS 495
EM 525/50
Cy3 : EX 545/25
BS 565
EM 605/70
Cy5 : EX 620/60
BS 660
EM 700/75
TRITC : EX 540/20
BS 570
EM 590
Software
MetaMorph
SPOT Basic/Advanced
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/WF_Olympus_upright,_BIOTEC

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

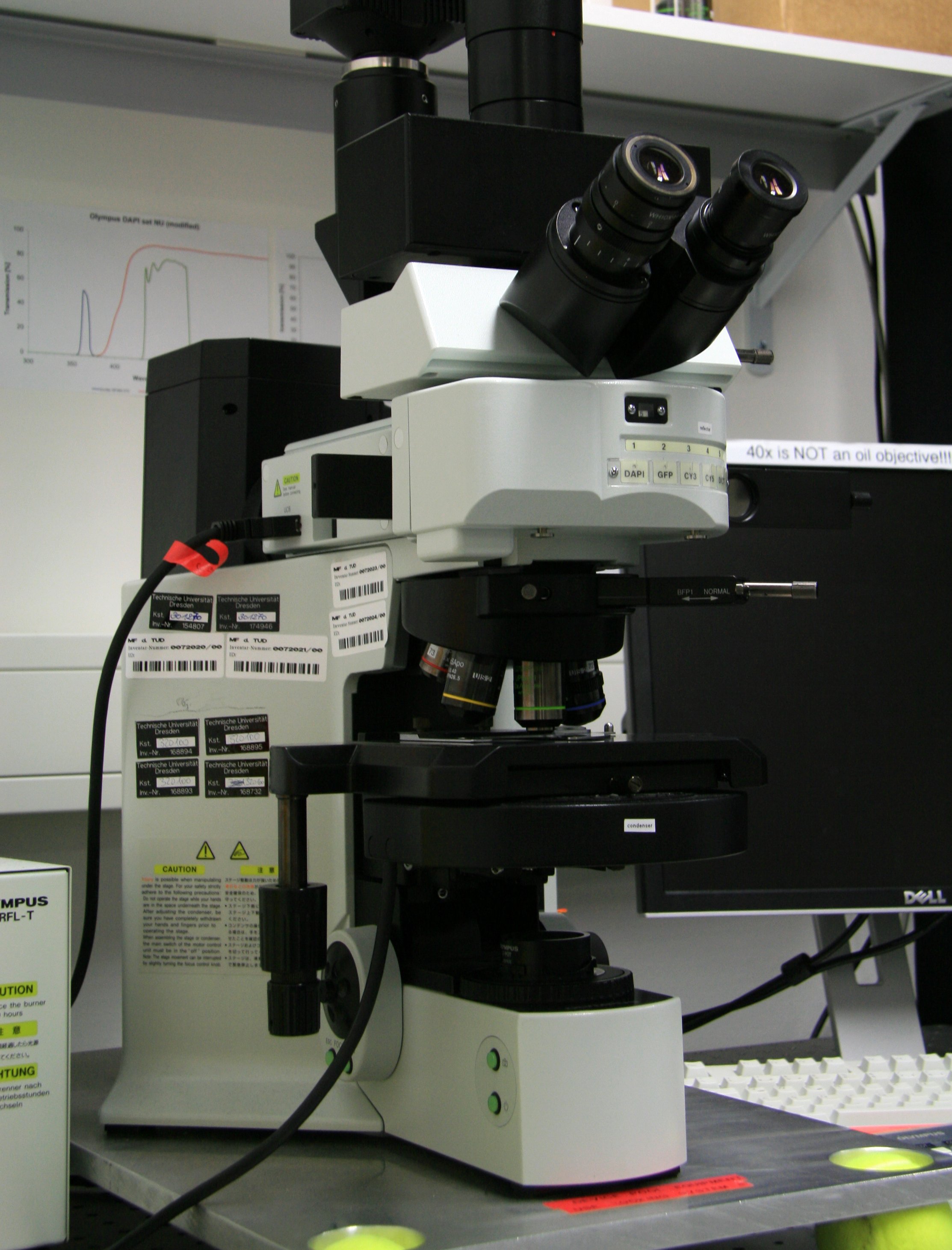

Images
