Dissection Microscope (WF Laser Microdissection, CRTD)

Basic Information

Name: Dissection Microscope (WF Laser Microdissection, CRTD)
Facility: Light Microscopy (LMF)
Partner: Technische Universität Dresden (TUD)
Inventory number: 908140

Description

Category
Light Microscope
Overview
it is a laser microdissection system consisting of an inverted fluorescent microscope with a motorized stage and two cameras (b/w and color)
Suitable for the manipulation of biological samples with a UV laser and the collection of cut material. It can be used for tissue sections, live cell selection and manipulations of whole organisms. Moreover it is a fully working imaging system.
Features
inverted stand,
Objectives
Zeiss Fluar 5x 0.25
Zeiss LD Plan-Neofluar 20x 0.4 Ph2
Zeiss LD Plan-Neofluar 40x 0.6
Zeiss Plan-Apochromat 150x 1.35 Glycerine
Zeiss EC Plan-Neofluar 40x 1.3 Oil
Zeiss EC Plan-Neofluar 10x 0.3
Illumination
Laser Diode 355 nm
Fluorescence (Metal Halide, HXP, 120W)
Transmitted Light (Halogen)
Detection
Axiocam MRm (1388*1040
6,45*6,45µm) - b/w
AxioCam ICc with b/w and color option (1388 x 1038 pixel
4,65x4,65 μm
16,3x4,8 mm active area)
Reflectors
DAPI + UV-Cut: EX 367/11
BS 405
EM 447/60
GFP + UV-Cut: EX 470/40
BS 488
EM 525/50
Cy3 + UV-Cut: EX 524/25
BS 561
EM 605/70
Cy5 + UV-Cut: EX 640/30
BS 635
EM 690/50
GFP (no cutting): EX 470/40
BS 510
EM LP 515
Software
AxioVision
Incubation
Not available

Link to Further Details

https://www.biodip.de/wiki/WF_Laser_Microdissection,_CRTD

Points of Contact

Mrs. Dr. Hella Hartmann
Email:
Phone:
+49 (0)351 463-40230
Fax:
+49 (0) 351 463 40038

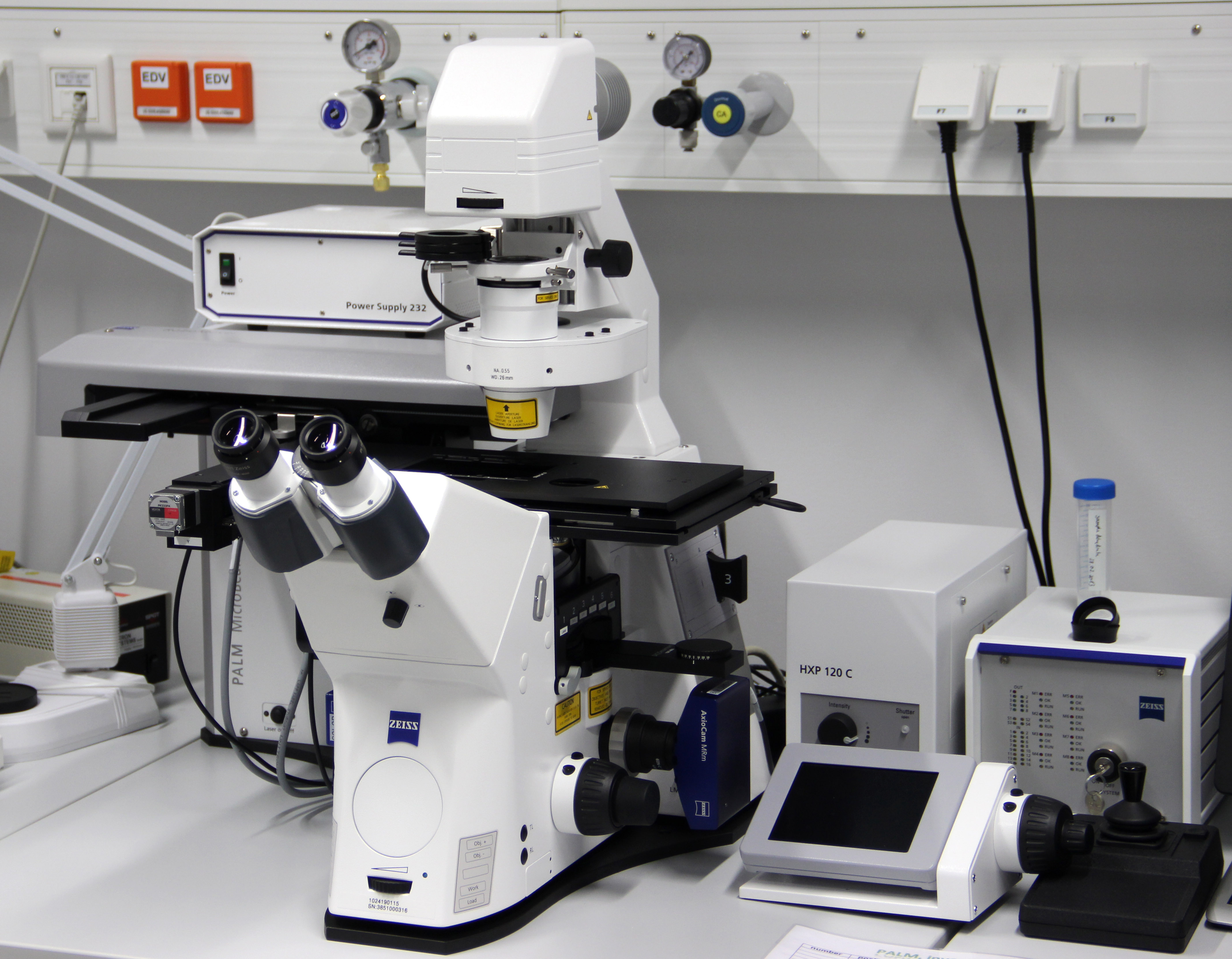

Images
