View all instruments of this unit Pull- und Schertester / Pull-Shear Tester Nordson DAGE 4000
Basic Information
| Name: | Pull- und Schertester / Pull-Shear Tester | |
| Manufacturer: | Nordson DAGE | |
| Model: | 4000 | |
| Facility: | Systems Integration and Electronic Packaging | |
| Partner: | Fraunhofer Institute for Ceramic Technologies and Systems (IKTS) |
|
Description
Mechanische Tests, u.a. Ermittlung von
- Haftfestigkeiten,
- Bonddrahtfestigkeiten
Messbereich:
- Dose Wire Pull: WP100g, WP1Kg, WP10Kg
- Dose Ball Shear: BS5Kg
- Dose Di Shear: DS100Kg
- Systemgenauigkeit ± 0,25% je kalibriertem Messdosenbereich
- Genauigkeit von ± 1 μm der Z-Position bei Ball/Die-Shear-Dosen
Link to Further Details
Points of Contact
Dr.-Ing. Lars Rebenklau
Web:
Phone:
+49 351 2553-7986
Fax:
+49 351 2554-232
Images
| Preview | Description |
|---|---|
|

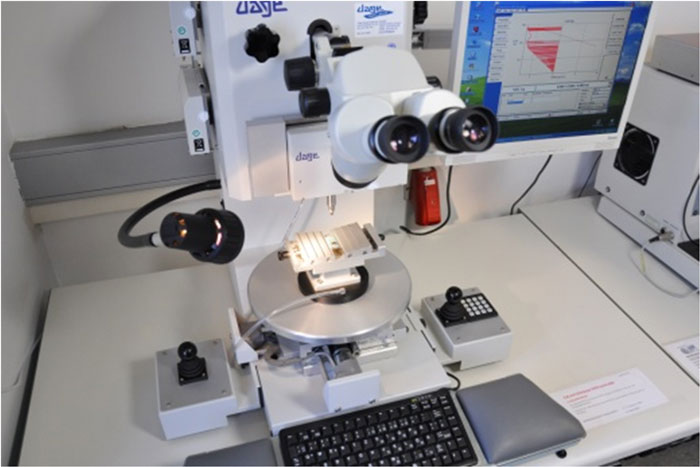

Pull- und Schertester DAGE 4000 (Quelle: www.ikts.fraunhofer.de) |
