View all instruments of this unit Vacuum Melting Device PVA Anlagenbau VSG 010
Basic Information
| Name: | Vacuum Melting Device | |
| Manufacturer: | PVA Anlagenbau | |
| Model: | VSG 010 | |
| Partner: | Fraunhofer Institute for Manufacturing Technology and Advanced Materials, Dresden Branch (IFAM) |
|
| Location: | Fraunhofer IFAM Dresden | |
Description
Melting device for special alloys.
Options of instrument usage
- This instrument is used within a service or research collaboration.
Points of Contact
Dr.-Ing. Thomas Weißgärber (prov. director)
Web:
Email:
Phone:
+49 351 2537-300
Fax:
+49 351 2537-399
Notes
Manufacturer: PVA Anlagenbau
Crucible: Ceramic up to 2000 cm³, graphite
Furnace Type: Vertical cold wall furnace
Heating: Induction heating up to10 kHz
Raw Material: Several alloys, Mg-, Al-, Fe-, Co-, Ni-Ag-, Pt-, Au-based
Temperature Range: Up to 2000 °C
Semi-Finished Products: Several geometries: rods, sheets
Atmospheres: Inert gases
Pump Assembly: Rotary vanepump, rootspump, oil diffusion pump
Pressure Range: Fore-vacuum, High vacuum up to10-4 mbar
Extra Equipment: Loading equipment, Multi-mould rotary table
Images
| Preview | Description |
|---|---|
|

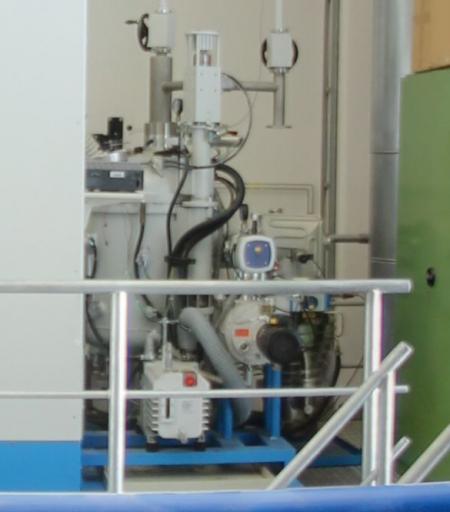

Vacuum Melting Device VSG 010 |
