View all instruments of this unit Tube Furnace X2 Xerion Freiberg X2
Basic Information
| Name: | Tube Furnace X2 | |
| Manufacturer: | Xerion Freiberg | |
| Model: | X2 | |
| Partner: | Fraunhofer Institute for Manufacturing Technology and Advanced Materials, Dresden Branch (IFAM) |
|
| Location: | Fraunhofer IFAM Dresden | |
Description
Classic tube furnace for heat treatment under controlled furnace atmosphere
Options of instrument usage
- This instrument is used within a service or research collaboration.
Points of Contact
Dr.-Ing. Thomas Weißgärber (prov. director)
Web:
Email:
Phone:
+49 351 2537-300
Fax:
+49 351 2537-399
Notes
Furnace Type: horizontal tube furnace
Heating System: resistance heating, outside
Useable Volume: diameter approx. 45 mm, usable length approx. 150 mm
Useable Gases: inert gases, hydrogen
Useable Gas Flow: 1 -3 l/min
Pressure Range: normal pressure with overflow
Temperature Range: up to 1300 °C (depending on the working tube)
Optional Equipment: oxygenmonitoring, internal pressure monitoring, various exchangeable working tubes (FeCrAl, Al2O3, quartz glass)
Images
| Preview | Description |
|---|---|
Source: Fraunhofer IFAM Dresden |

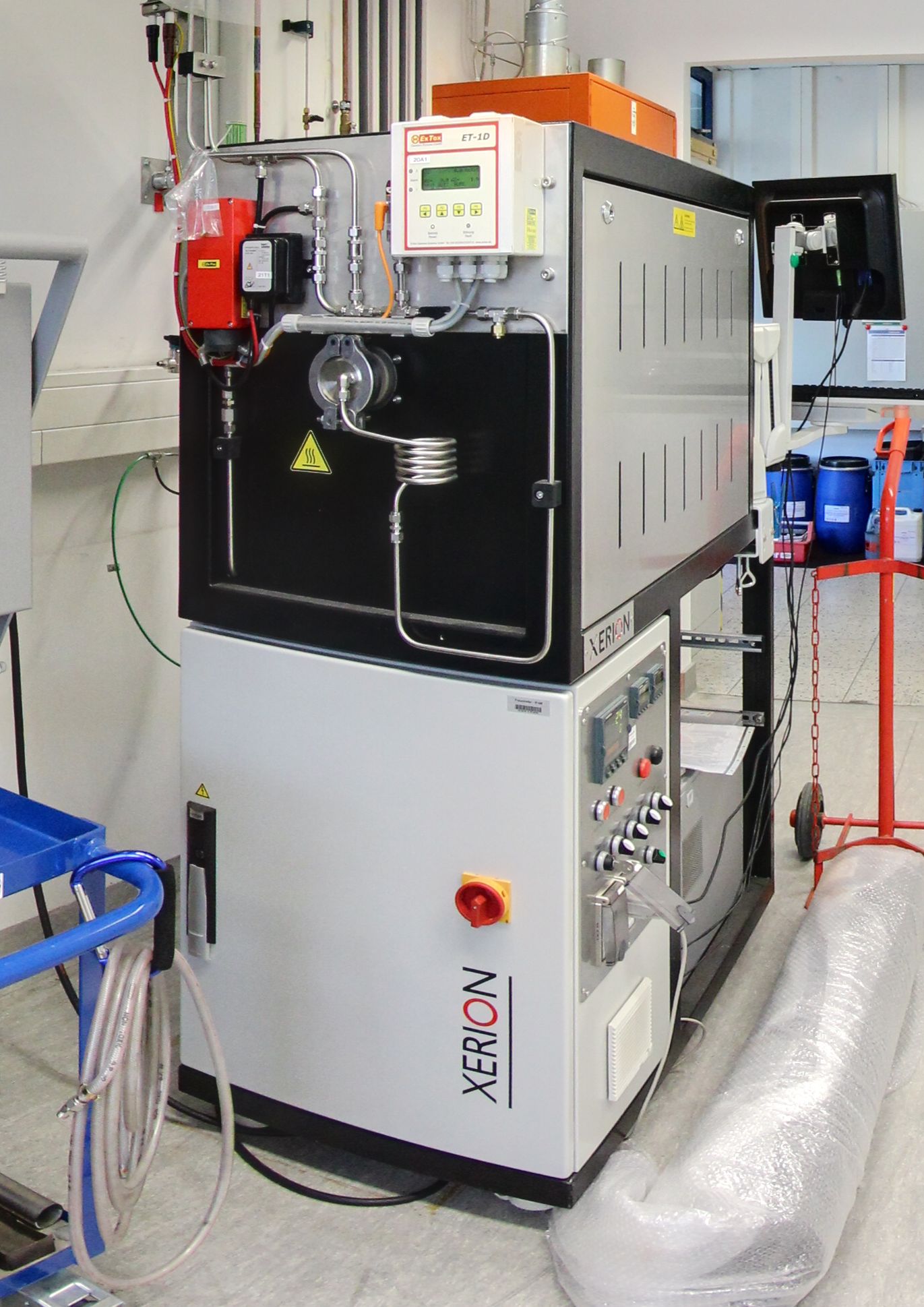

Tube Furncance X2 |
Last Update
Last updated at: 28 March 2018 at 14:53:06
