Vertical in-line coating plant for developing layer systems and technologies for the deposition of optical, electrical and decorative functional layers.

Vertical in-line coating plant for developing layer systems and technologies for the deposition of optical, electrical and decorative functional layers.

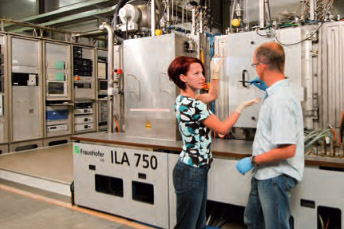

The ILA 750 is our in-line sputtering plant which we use to develop layers,  layer stacks, and sputtering processes in a highly efficient way. Flat substrates made of glass, polycarbonate, other polymers, metal sheets, and ceramics can be coated with various layers (metal, metal oxide, metal nitride, and metal oxynitride layers) using reactive and non-reactive sputtering processes.



Typical substrate

• single-sided or two-sided coating of substrates made of metal, plastic, glass or ceramics with substrate dimensions up to 500 × 300 mm² (maximum 600 × 400 mm²) and a maximum thickness of 60 mm



Range of applications

• development and testing of technological components and key components for the deposition of metals and oxides under near- industrial conditions
• development of optical, electrical, decorative functional layers and layer systems
• coatings:
• for special studies/tests
• for marketing purposes
• for samples for final customers
• pilot production
• evaluation of the economics of the processes
