500 MHz NMR Spektrometer Bruker Biospin AG Avance III HDX

Informationen

Name: 500 MHz NMR Spektrometer
Hersteller: Bruker Biospin AG
Modell: Avance III HDX
Einrichtung: Professur für Anorganische Molekülchemie (ACIII)
Partner: Technische Universität Dresden (TUD)

Kurzbeschreibung

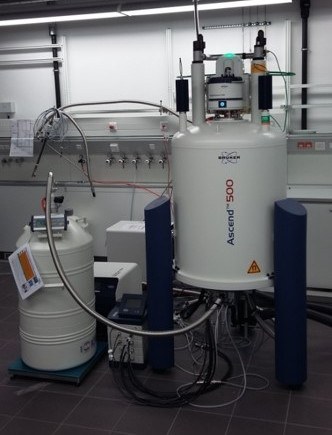

This high resolution NMR spectrometer system is a 500 MHz Ascend magnet equipped with a BBO(F) Prodigy CryoProbe (frequency area: 31P - 109Ag) controlled by a three channel Avance III HDX console.

Beschreibung

The NMR (Nuclear Magnetic Resonance) facility in the Weigand group consists of two high-resolution NMR machines from Bruker.

This high resolution NMR spectrometer system is a 500 MHz Ascend magnet equipped with a BBO(F) Prodigy CryoProbe (frequency area: 31P - 109Ag) controlled by a three channel Avance III HDX console. The cooled RF (radio frequency)-coils and preamplifier provide a sensitivity which is two to four times higher compared to the room temperate systems. In addition, this system is equipped with a sample changer (SampleXpress Lite) which consists of 16 sample holders. Variable temperature experiments are performed with a BCU II temperature unit (temperature range: +90 to -40 °C).

With this equipment 1D experiments (e.g. 1H, 6Li, 11B, 13C, 14/15N, 19F, 27Al, 29Si, 31P, 71Ga, 77Se, 125Te, etc.) and 2D-correlation experiments (e.g. HSQC, HMBC, 1H1H-COSY, 1H1H-ROESY, 31P31P-COSY, 1H1H-EXSY, 31P31P-EXSY, 1H19F-HOESY, 31P19F-HOESY, etc.) are performed in the daily routine.

Both high resolution NMR spectrometer systems are connected to the Helium recycling facility of the TU Dresden.

Link zu weiteren Informationen

https://www.bruker.com/de/products/mr/nmr.html

Ansprechpartner

Prof. Dr. Jan Weigand / Mrs. Katja Elsner (Sec.)
E-Mail:
Telefon:
+49 351 463-42698
Fax:
+49 351 463-31478
