View all instruments of this unit X-ray Microscope (XRM) Xradia (now Carl Zeiss Ultra) NanoXCT-100
Basic Information
| Name: | X-ray Microscope (XRM) | |
| Manufacturer: | Xradia (now Carl Zeiss Ultra) | |
| Model: | NanoXCT-100 | |
| Facility: | Microelectronic Materials and Nanoanalysis | |
| Partner: | Fraunhofer Institute for Ceramic Technologies and Systems (IKTS) |
|
Description
X-ray microscope Xradia Nano-XCT-100 (Concord, California) operated at a photon energy of 8.0 keV(Cu-Kalpha radiation)
- Standard resolution (SR): 10x FZP magnification x 20x opticalmagnification=200x total magnification, field of view 67 x 67 um
- High resolution (HR): 40x FZP magnification x 20x optical magnification=800x totalmagnification, field of view 16.5 x 16.5 um
Available in-situ tools:
- Micro-DCB tester
- micromechanical test rig
- tomo cell
- heating stage
Points of Contact
Dr. Birgit Jost and Dr. André Clausner
Web:
Email:
Phone:
+49 351 88815-547
Fax:
+49 351 88815-509
Notes
This is an instrument within the Dresden Fraunhofer Cluster Nanoanalysis (DFCNA).
Images
| Preview | Description |
|---|---|
|

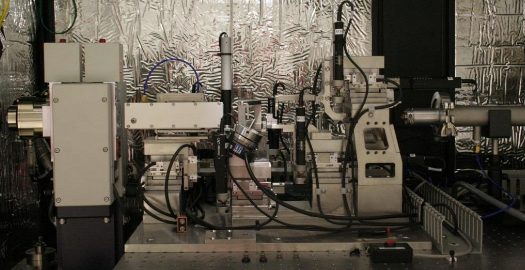

X-ray Microscope Xradia NanoXCT-100 |
