Automated Flash Purification Biotage Isolera Spektra Four

Informationen

Name: Automated Flash Purification
Hersteller: Biotage
Modell: Isolera Spektra Four
Einrichtung: Professur für Anorganische Molekülchemie (ACIII)
Partner: Technische Universität Dresden (TUD)

Kurzbeschreibung

The Isolera Spectra Four by Biotage is an advanced flash purification system allowing a fast and cost effective isolation of compounds from reaction mixtures.

Beschreibung

The IsoleraTM Spektra Four by Biotage is an advanced flash purification system allowing a fast and cost effective isolation of compounds from reaction mixtures. A self-explanatory wizard determines a gradient based on TLC results. Subsequently, the gradient can be freely adapted to further optimize the separation process (e.g. step-gradients). Apart from corrosive solvents there are no restrictions on the used solvents and their quality. Up to four different solvents (quattro-binary gradients) may be used within a single run. An automatic baseline correction allows the detection of weekly absorbing substances even in a strongly absorbing mobile phase. Automated collection in into test tubes (20ml or 50ml) above a chosen absorbance threshold or in collect-all mode. Recognition of not baseline separated peaks results in a fraction change (also manually possible) to achieve maximum purification.

Specifications:

Flowrate: 1-200ml/min

Detector: UV-Vis 200-800nm

UV Collection Modes: Single/dual/λ-All wavelengths (variable UV and UV-Vis)

Pressure limit: 10bar

Amount per run: milligrams to approx. 10g

Available cartridges: 10g, 25g, 50g, 100g and 300g silica SNAP KP-Sil (refillable), 100g SNAP Ultra C18 (reverse phase)

Link zu weiteren Informationen

https://www.biotage.com/product-page/isolera-prime

Ansprechpartner

Prof. Dr. Jan Weigand / Mrs. Katja Elsner (Sec.)
E-Mail:
Telefon:
+49 351 463-42698
Fax:
+49 351 463-31478

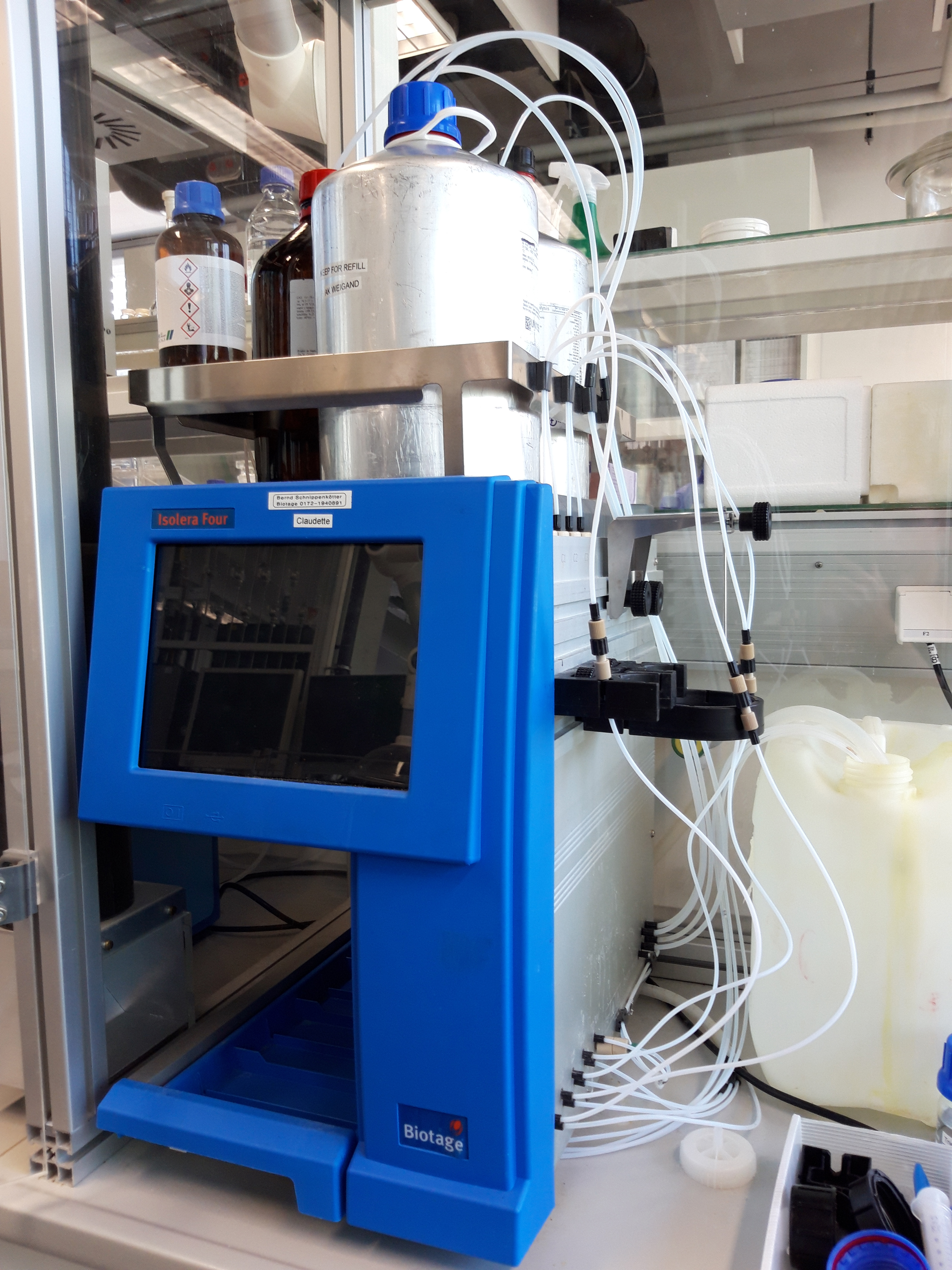

Bilder

Letztes Update

Zuletzt aktualisiert am: 24. Mai 2019 um 09:10:19
