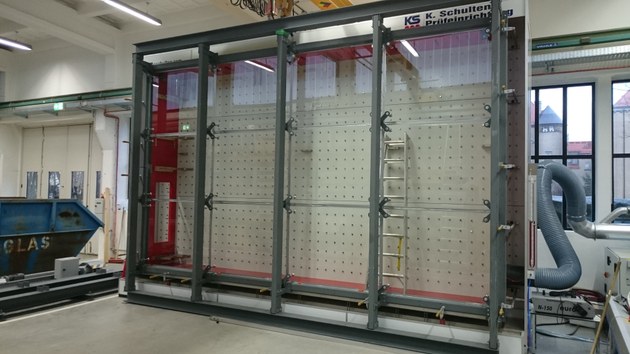

Window and Facade testing wall K. Schulten GmbH KS 6037/650 PC

Basic Information

Name: Window and Facade testing wall
Manufacturer: K. Schulten GmbH
Model: KS 6037/650 PC
Facility: Prüfhalle
Partner: Technische Universität Dresden (TUD)

Description

Test bench for windows, doors and curtain facade elements for testing:

  • air permeability according to DIN EN 1026 and DIN EN 12153
  • the impact resistance according to DIN EN 1027 and DIN EN 12155
  • of the resistance to wind load according to DIN EN 12211 and DIN EN 12179.

The window and façade test wall is suitable for windows and façade elements up to a size of 6000 mm x 3600 mm (bxh) and for pressure and traction loads up to 5,000 Pa with a maximum air volume flow of 5,000 m³ / h. Furthermore, the window and façade test wall has an integrated measuring system for recording deformations on the test elements.

Link to Further Details

https://tu-dresden.de/bu/bauingenieurwesen/bauko/friedrich-siemens-laboratorium/pruefhalle

Options of instrument usage

Points of Contact

Herr Dr.-Ing. Jan Ebert
Email:
Phone:
+49 (0)351 463-32252
Fax:
+49 (0)351 463-35039
