View all instruments of this unit Cascade Wind Tunnel (GWK)
Basic Information
| Name: | Cascade Wind Tunnel (GWK) | |
| Facility: | Chair for Turbomachinery and Flight Propulsion (TFA) | |
| Partner: | Technische Universität Dresden (TUD) |
|
| Location: | ZET | |
Short Description
The Cascade Wind Tunnel is a continuously operating, open wind tunnel. It's used for the investigation of turbine or compressor bladings.
Description
Cascade Wind Tunnel (GWK)
- continuously operating, open wind tunnel
- operating from the low speed range up to high subsonic inflow by optional drive using blowers or compressors
- investigation of turbine or compressor bladings
- simulation of the rotor-stator interaction
by moving bar wake generators
Link to Further Details
Points of Contact
Prof. Dr.-Ing. habil. Ronald Mailach/ Mrs. C. Höntsch (Sec.)
Web:
Email:
Phone:
+49 351 463-38181
Fax:
+49 351 463-38182
Notes
Technische Daten
| Bauart: | kontinuierlich arbeitender, offener Windkanal mit modularem Aufbau |
| Antriebsmotor: | Turbogebläse mit 485 kW / 1500 U/min (ΠV = 1.1, V = 17.3m3/s) Turboverdichter mit 1200 kW / 12500 U/min (ΠV = 2.0, V = 12.4m3/s) |
| Messquerschnitt: | 650 x 180 mm / 935 x 300 mm |
| Machzahl: | Ma = 0.2…0.6 |
Images
| Preview | Description |
|---|---|
|

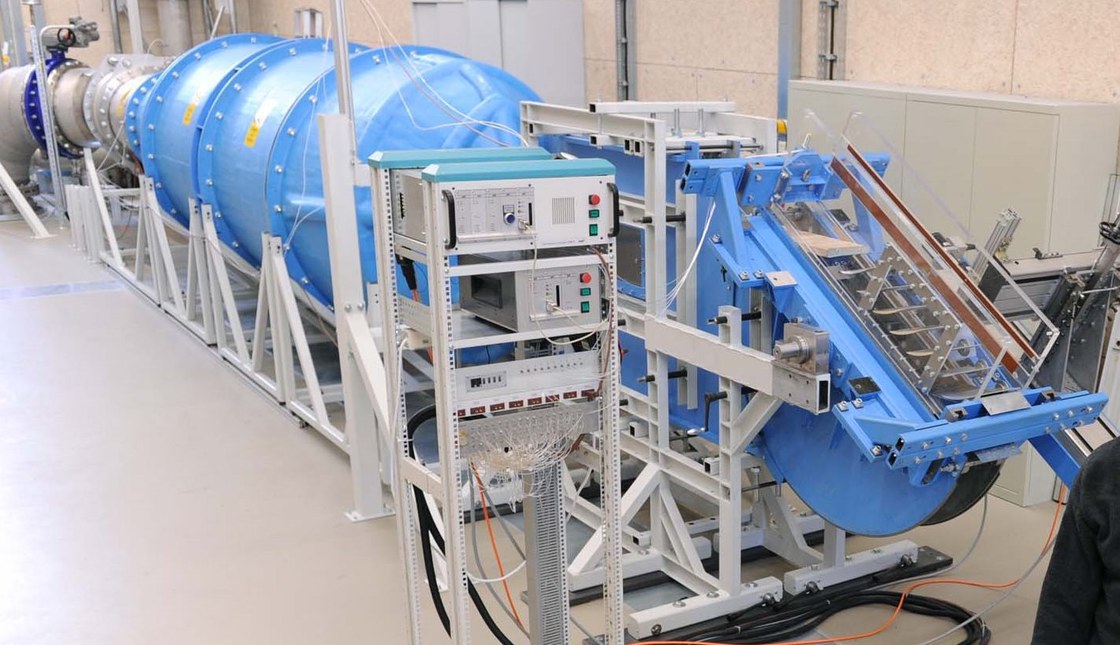

Cascade Wind Tunnel |
Last Update
Last updated at: 26 January 2018 at 15:46:02
