View all instruments of this unit Roll-to-Roll Nanoimprint Lithography Coatema Basecoater BC 51
Basic Information
| Name: | Roll-to-Roll Nanoimprint Lithography | |
| Manufacturer: | Coatema | |
| Model: | Basecoater BC 51 | |
| Facility: | Chair of Laser-based Manufacturing | |
| Partner: | Technische Universität Dresden (TUD) |
|
| Partner: | Fraunhofer Institute for Material and Beam Technology (IWS) |
|
| Inventory number: | 25144653 | |
Description
UV-NIL mode:
In UV Nanoimprint Lithography (NIL), the substrate is coated with a UV curable resist, which is imprinted by a mold and subsequently cured using UV light. In this way, an inverse structure of the mold is created.
Thermal-NIL mode:
During thermal-NIL, the structured rollers is heated above the glass transition temperature (Tg) and pressed against the counter roller while rotating, thereby transferring the inverse structure to the thermoplastic polymer.
| Process Parameter | UV-NIL | Thermal-NIL |
| Imprint temperature | up to 120 °C | up to 160 °C |
| Pre-bake temperature | up to 200 °C | up to 200 °C |
| Line pressure | up to 72 N/mm² | up to 200 N/mm² |
| Web speed | 1-50 m/min | 1-50 m/min |
| Foil width | 250 mm | 250 mm |
| UV-lamp power | 140 W/cm² |
Points of Contact
Prof. Dr.-Ing. Andrés F. Lasagni / Mrs. Lisa Becher (Sec.)
Web:
Email:
Phone:
+49 351 463-37844
Fax:
+49 351 463-37755
Images
| Preview | Description |
|---|---|
Source: ©Coatema |

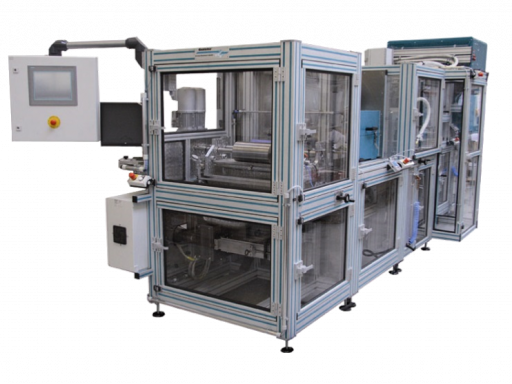

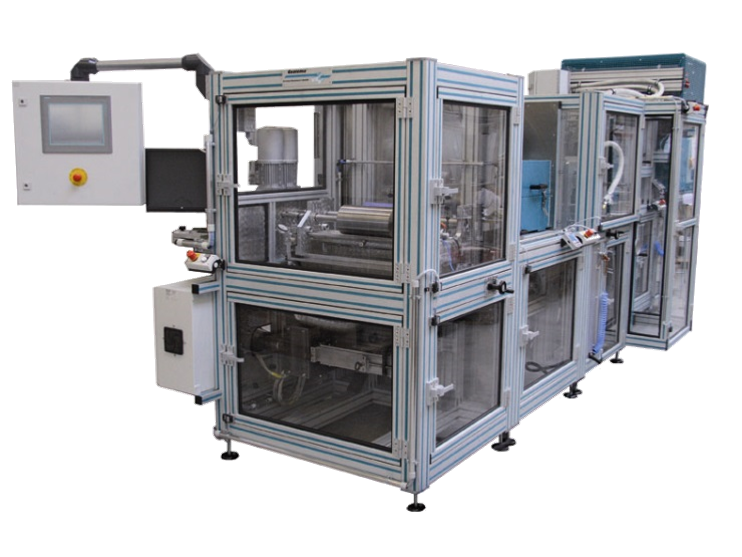

Roll-to-roll machine |
