3D Direct Laser Interference Patterning System Designed by TU Dresden, LMO

Basic Information

Name:	3D Direct Laser Interference Patterning System
Manufacturer:	Designed by TU Dresden, LMO
Facility:	Chair of Laser-based Manufacturing
Partner:	Technische Universität Dresden (TUD)
Partner:	Fraunhofer Institute for Material and Beam Technology (IWS)
Location:	ZEU048

Description

Direct Laser Interference Patterning

In Direct Laser Interference Patterning (DLIP), a substrate is irradiated with two or more coherent sub-beams, leading to a specific periodic modulation of the laser intensity distribution in the volume of beam intersection. This modulation can be directly transferred to the material surface by selective local ablation.

DLIP-treatment of cylindrical tools

In order to make function-optimised surfaces affordable for a wide range of applications, economic aspects such as throughput must be taken into account. Particularly, high production rates are enabled in Roll-to-Roll manufacturing. Therefore, the DLIP-machining of tools for Roll-to-Roll processes has been developed.

Components

DLIP Kopf: Fraunhofer IWS
Achsen: Aerotech GmbH
Laser: Edgewave GmbH
Air cushion cylinder: Sächsische Walzengravur SWG

Points of Contact

Prof. Dr.-Ing. Andrés F. Lasagni / Mrs. Lisa Becher (Sec.)

Web:

https://tu-dresden.de/ing/maschinenwesen/if/lmo

Email:

e-mail

Phone:

+49 351 463-37844

Fax:

+49 351 463-37755

Images

Preview	Description

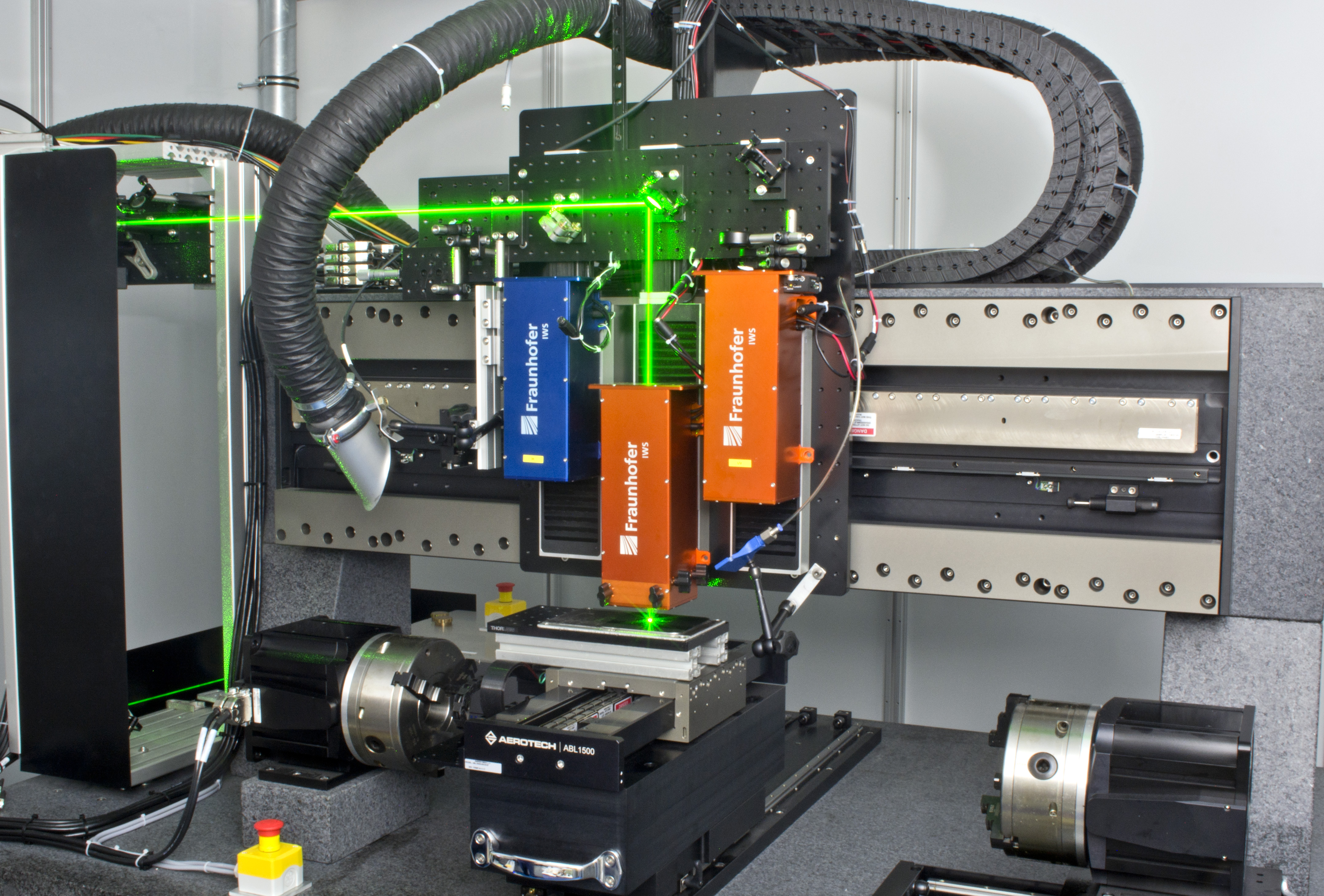

Source: ©TU Dresden, LMO	3D Direct Laser Interference Patterning System
